ECO-WORTHY Complete Off-Grid Solar Power System | 10000W 120/240V Output | 20.48kWh–61.44kWh Lithium Battery | 4920W–14760W PV Input

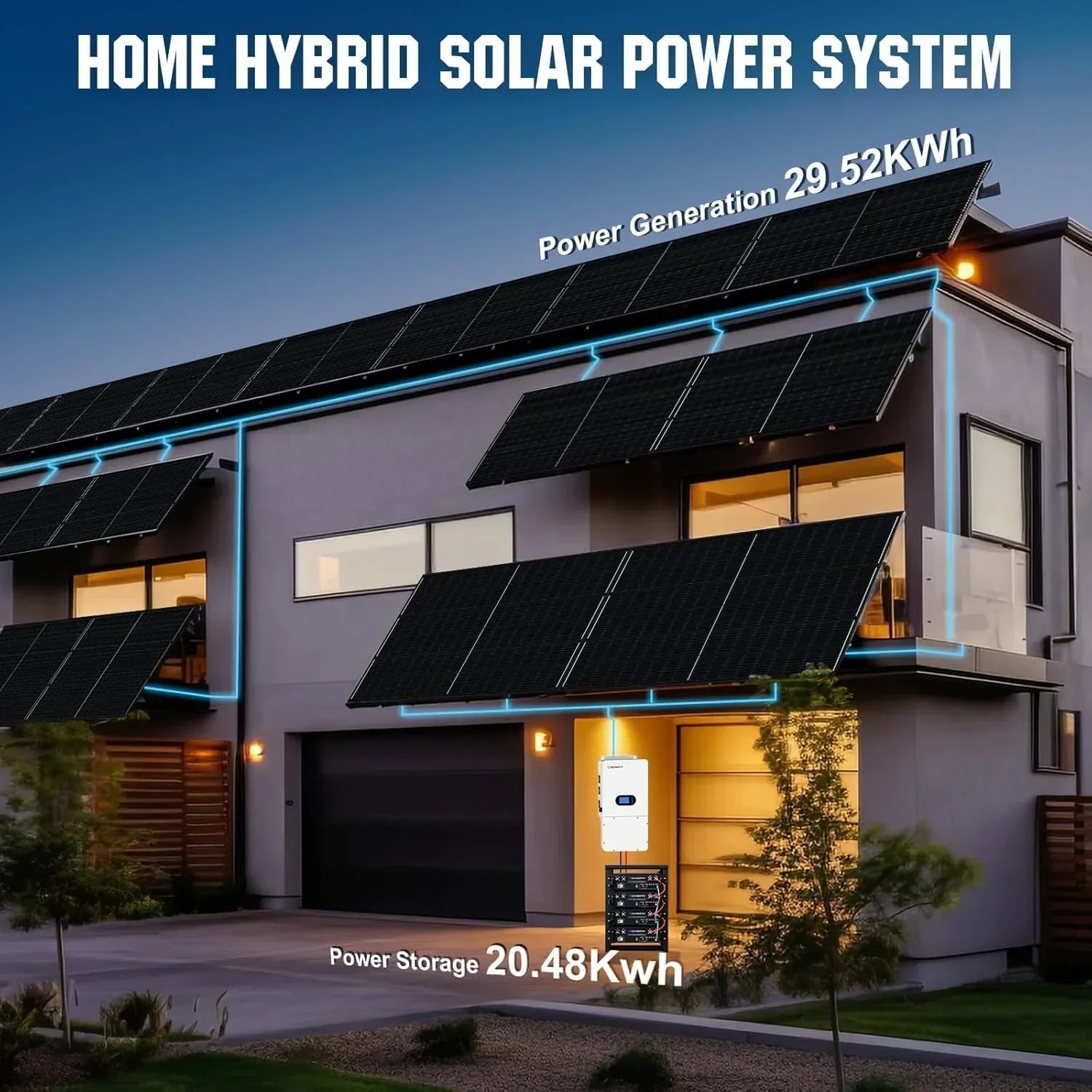

The ECO-WORTHY Complete Off-Grid Solar Power System is a high-capacity, all-in-one energy solution for homes, cabins, workshops, and commercial off-grid applications. Available in multiple configurations, this system combines high-efficiency ECO-WORTHY 410W monocrystalline solar panels, 10kW 48V All-in-One off-grid inverters, and modular 51.2V 100Ah LiFePO₄ lithium batteries to deliver reliable, clean, and scalable solar energy.
With integrated MPPT solar charging, pure sine wave output, and optional server rack expansion, this system provides robust power for heavy-duty appliances, electronics, and energy-intensive off-grid setups.
System Configurations

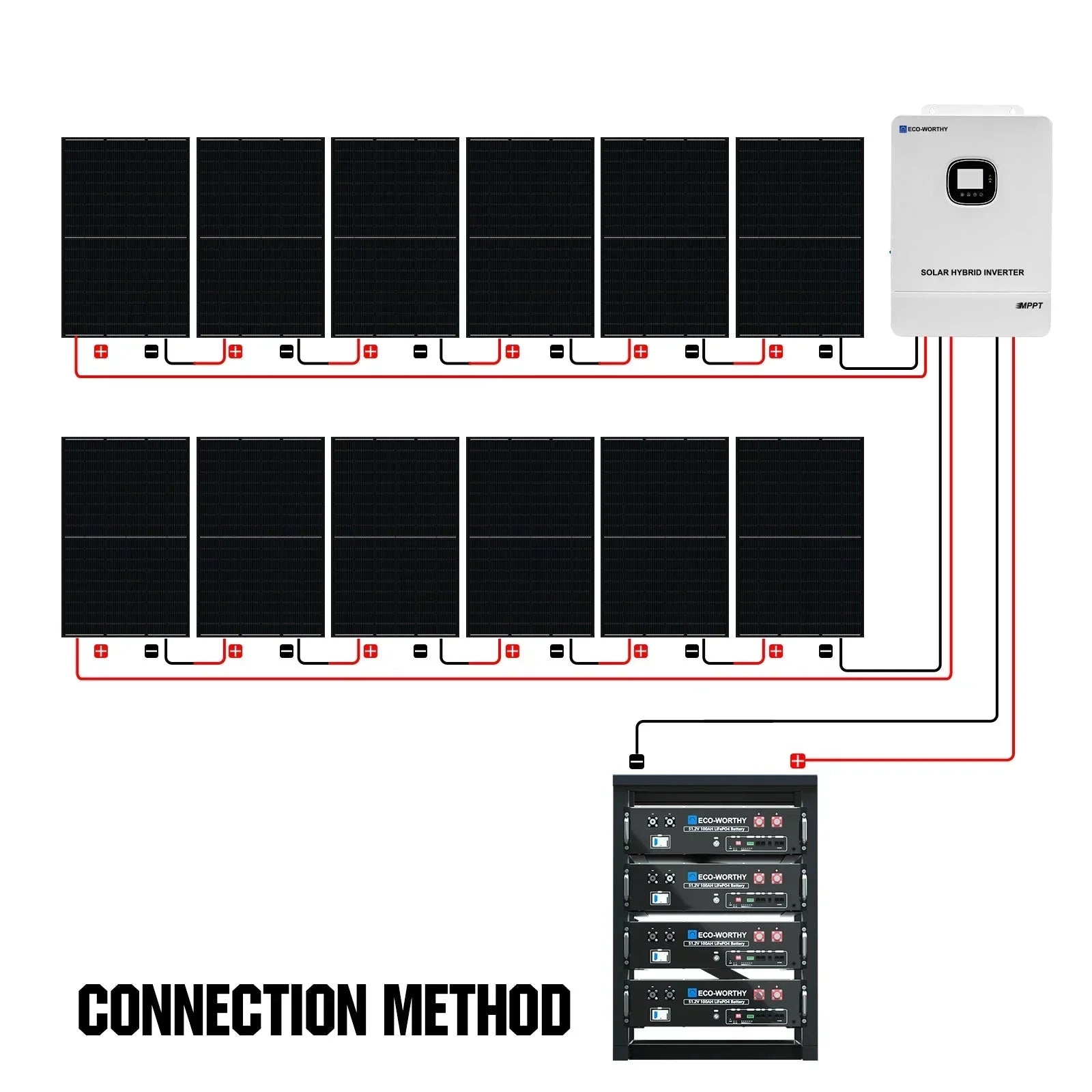

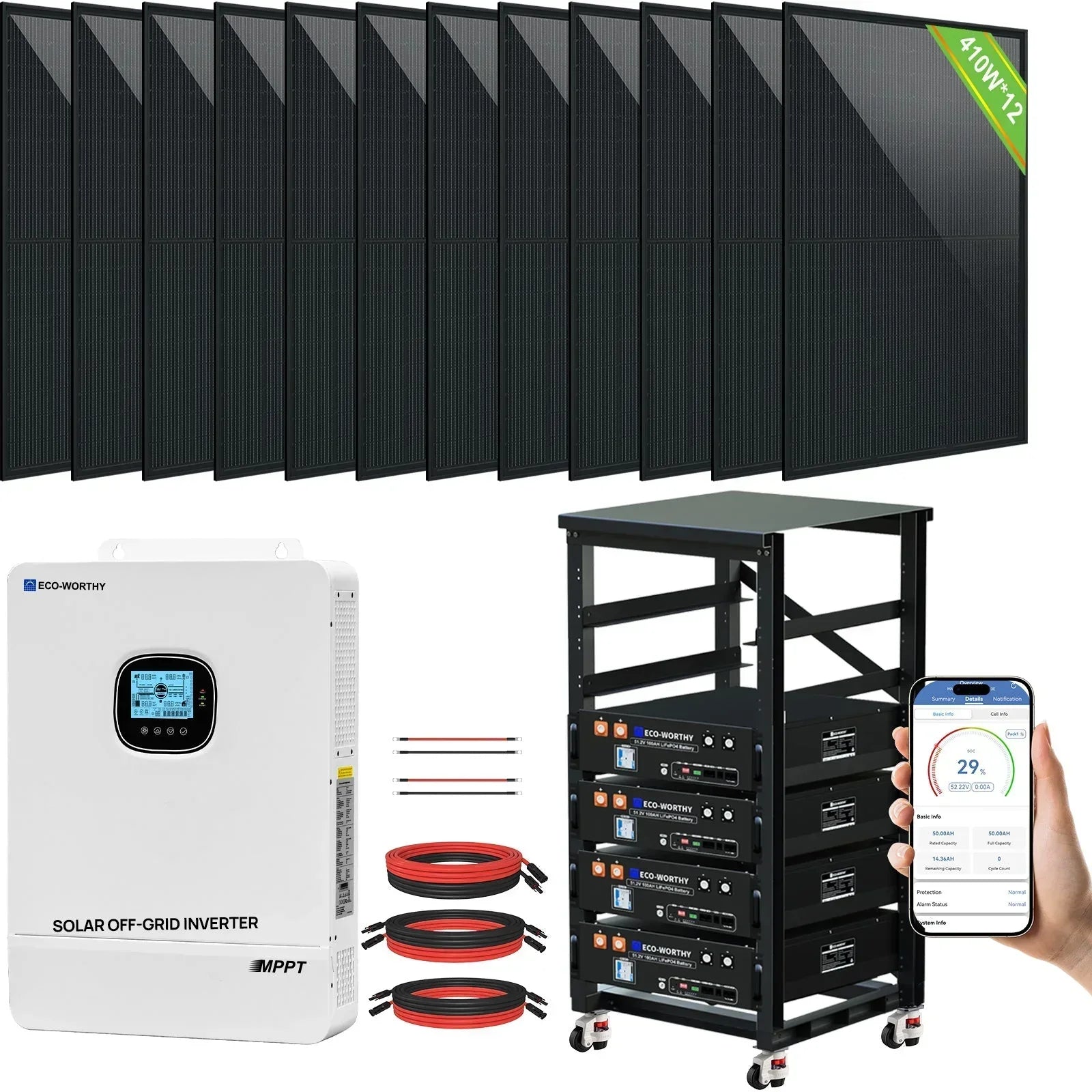

4920W PV & 20.48kWh Battery
-
12× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)
-
1× ECO-WORTHY 10000W All-in-One Off-Grid Inverter
-
1× PV-to-Inverter Cable
-
2× PV Extension Cables
-
4× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries
-

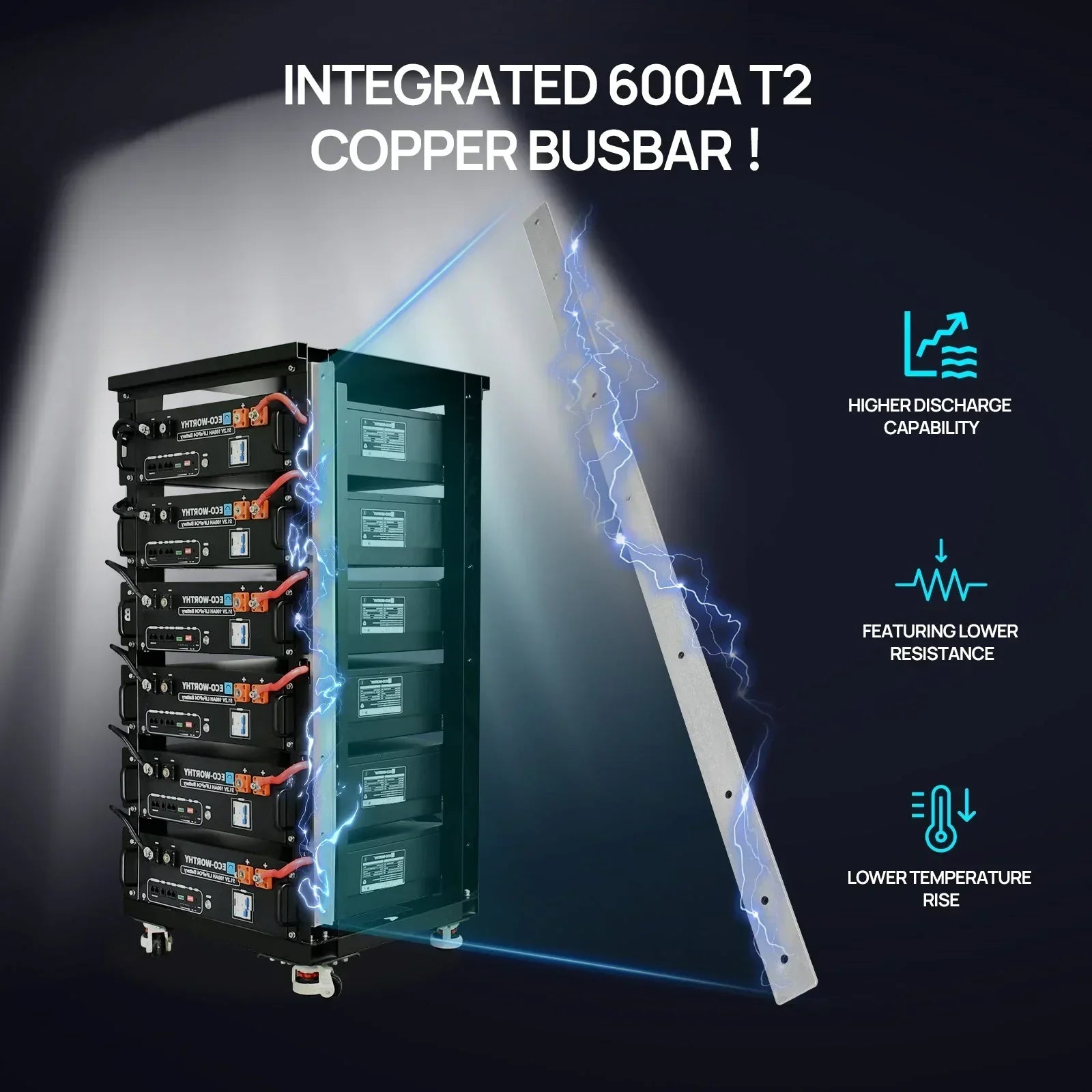

1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

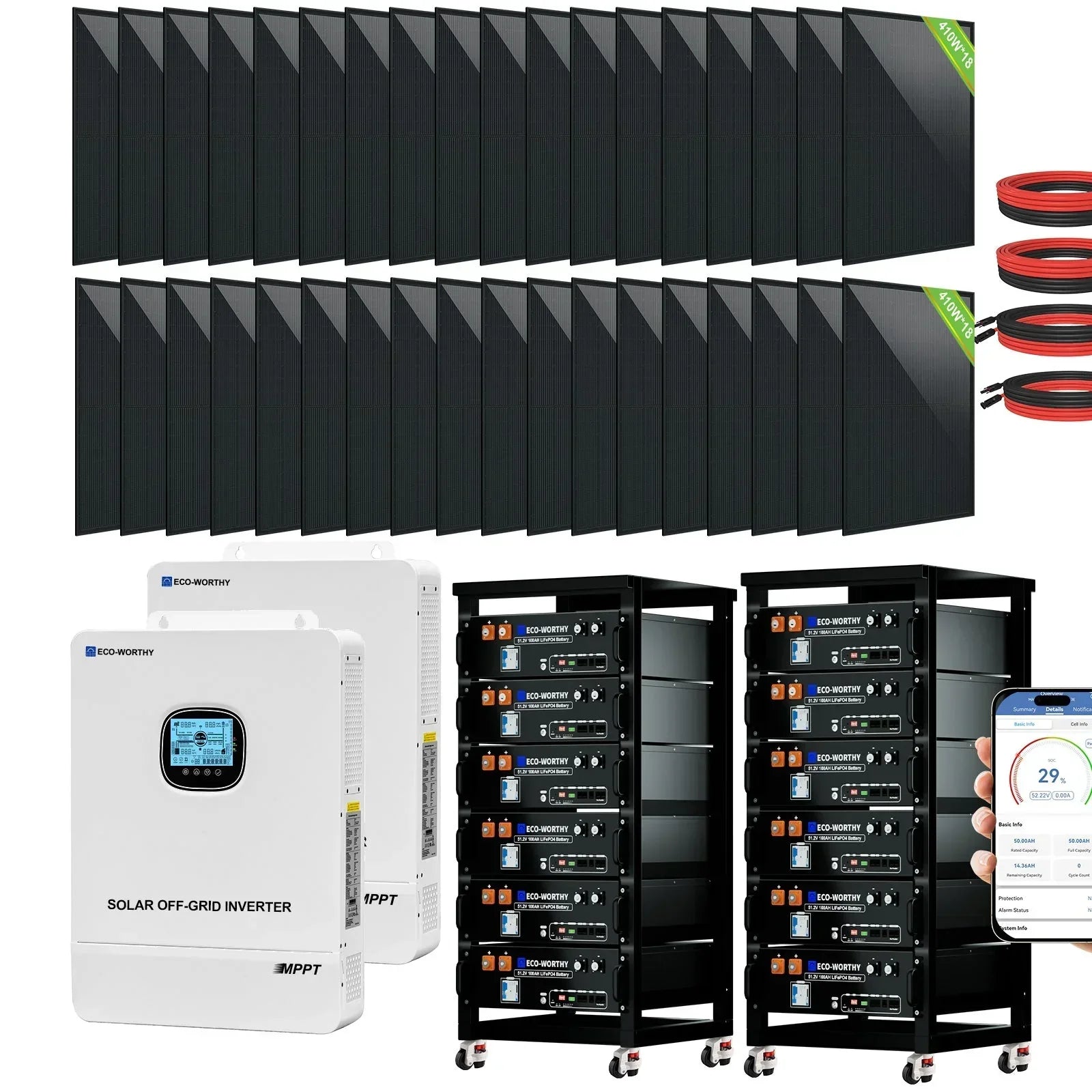

14760W PV & 61.44kWh Battery
-
36× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)
-
2× ECO-WORTHY 10000W All-in-One Off-Grid Inverters
-
4× PV-to-Inverter Cables
-
8× PV Extension Cables
-
12× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries
-
2× ECO-WORTHY RACK6 V2 I 6-Layer Racks with 600A Busbar

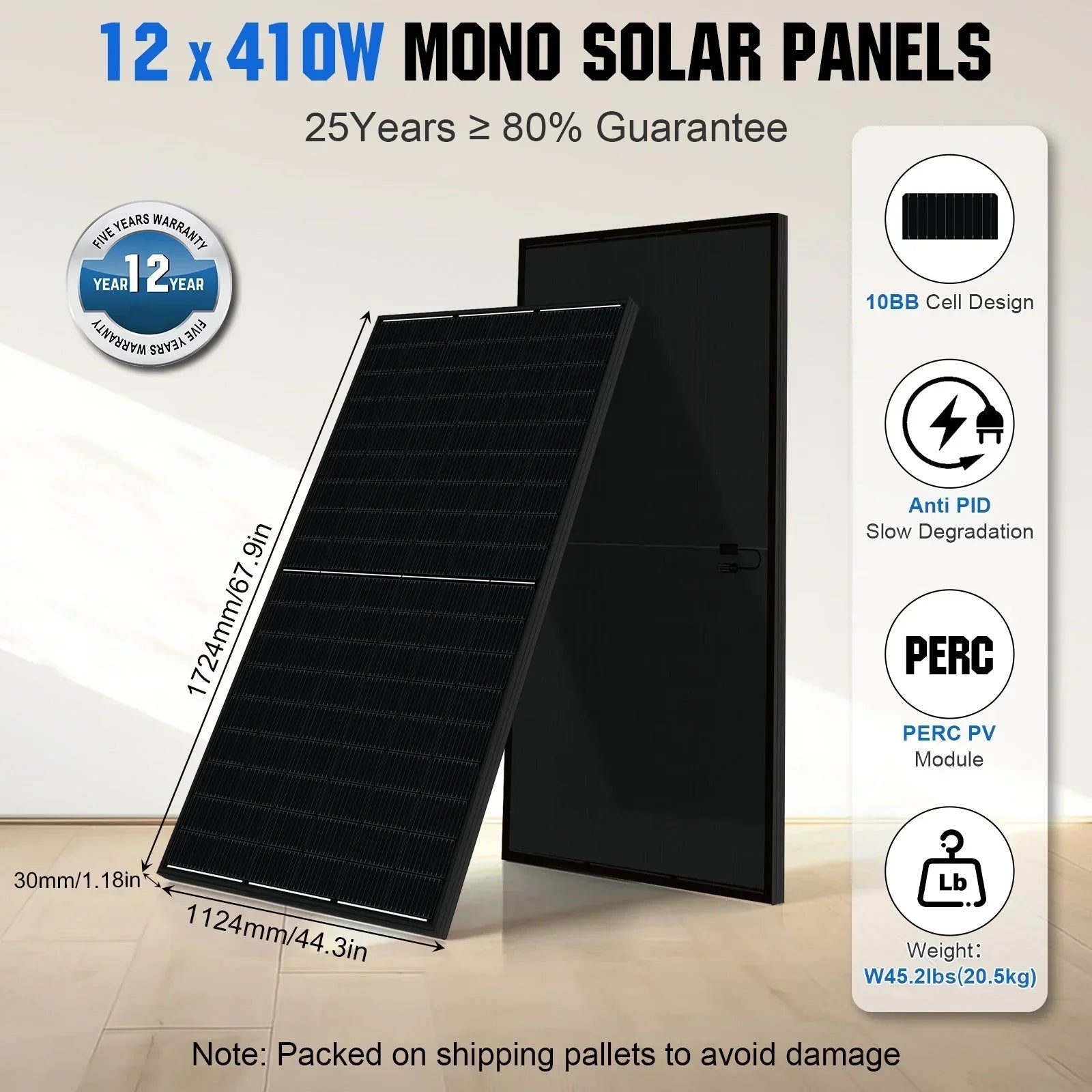

ECO-WORTHY 410W Monocrystalline Solar Panel Specifications
-
Rated Power: 410W
-
Solar Cell: Mono PERC
-
Maximum Power Voltage (Vmp): 31.3V
-
Open Circuit Voltage (Voc): 37.5V
-
Short Circuit Current (Isc): 13.84A
-
Maximum Current (Imp): 13.1A
-
Output Tolerance: ±3%
-
Temperature Coefficient of Isc: 0.05%/°C
-
Temperature Coefficient of Voc: –0.29%/°C
-
Operating Temperature: –40°C to +85°C
-
Frame: Aluminum Alloy
-
Dimensions: 1724 × 1134 × 30 mm
-
Weight: 20.5 kg

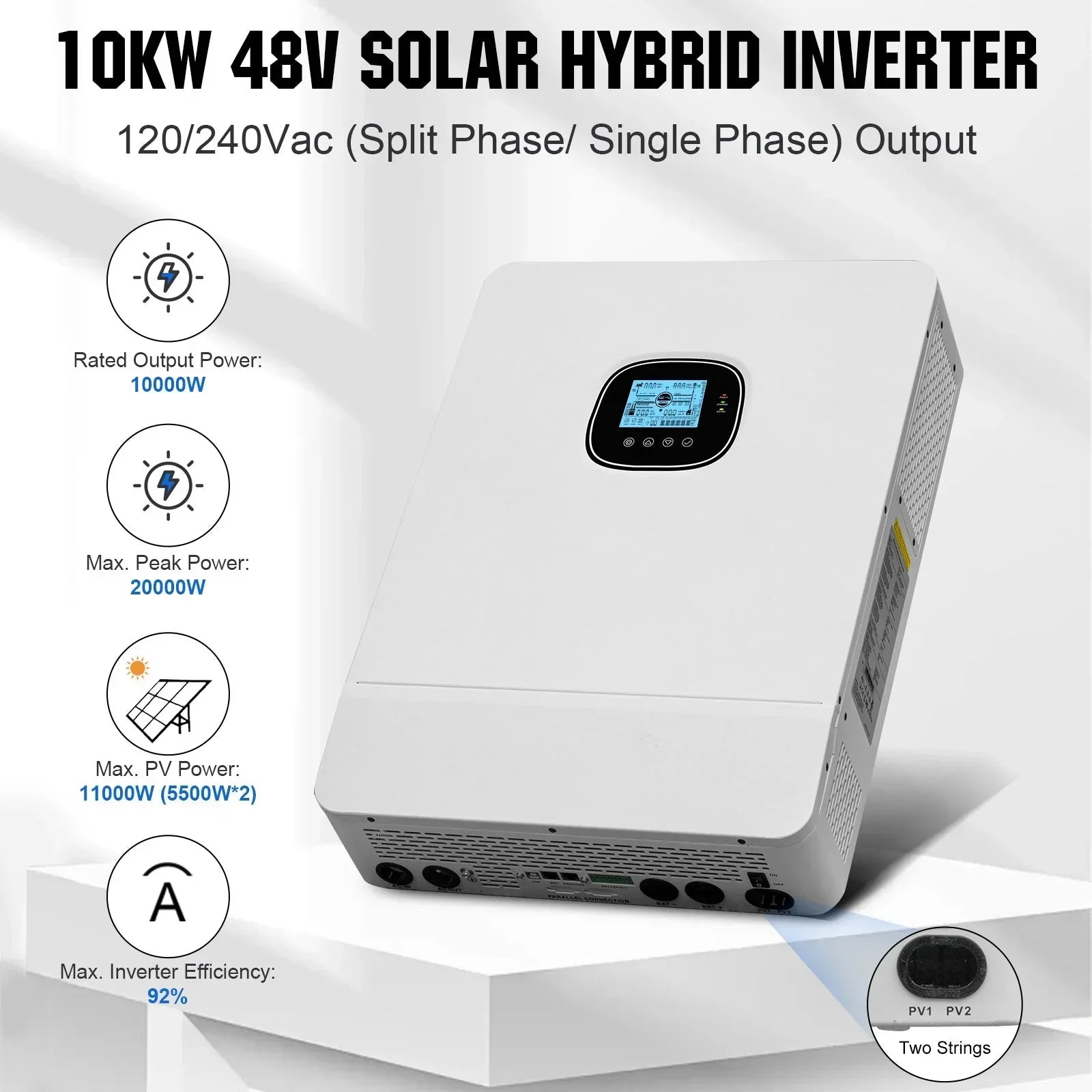

ECO-WORTHY 10kW 48V All-in-One Inverter with 200A MPPT
-
Rated Output Power: 10,000W
-
Peak Power: 20,000W
-
Output Voltage: 120/240V AC, 50Hz/60Hz
-
Output Waveform: Pure Sine Wave
-
Battery Input Voltage: 48V
-
Solar Charging Mode: PV Charging Current 0–200A, MPPT Voltage 125–425VDC, Max Input Power 11,000W
-
AC/Grid Charging Mode: 90–140VAC, 50Hz/60Hz (Auto Detect)

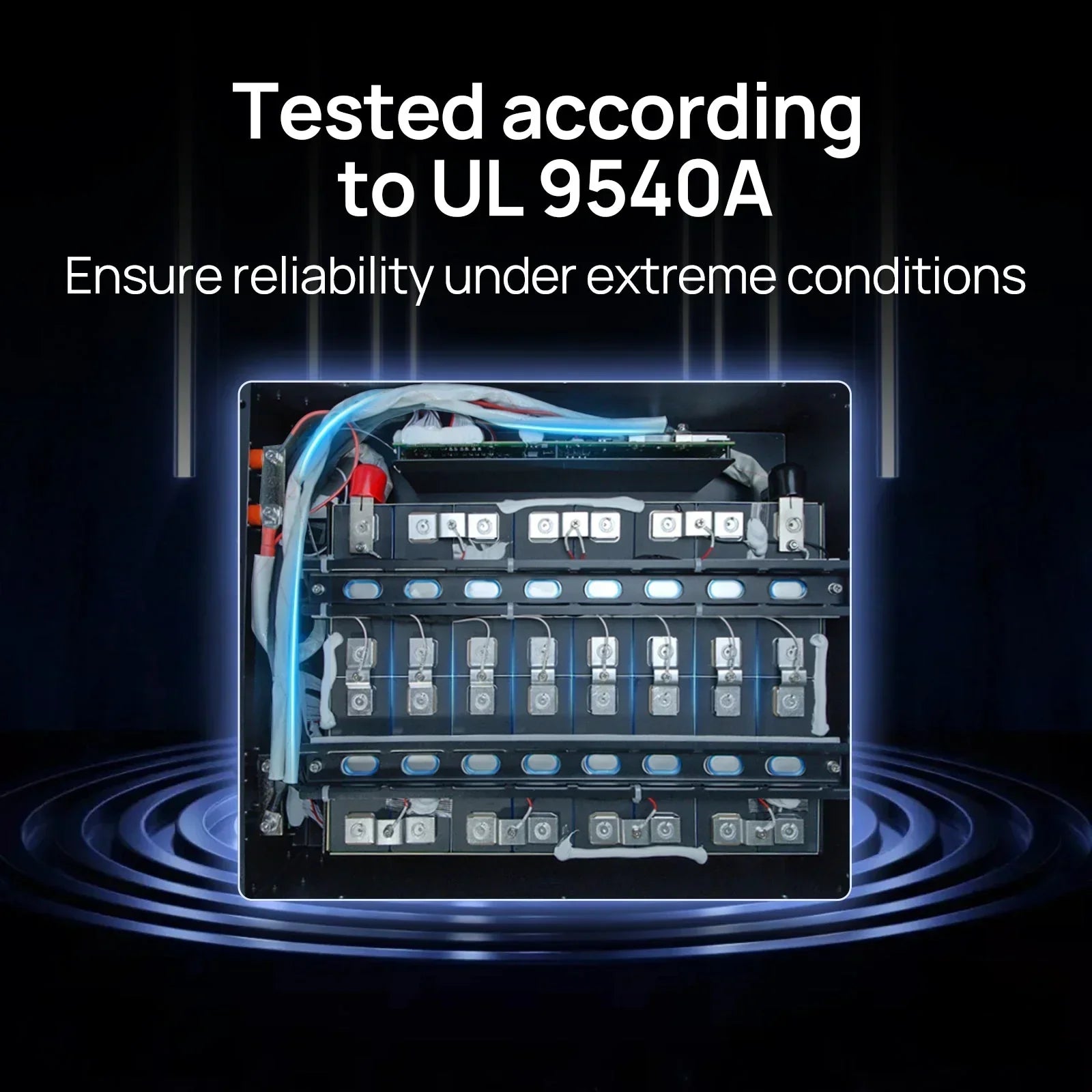

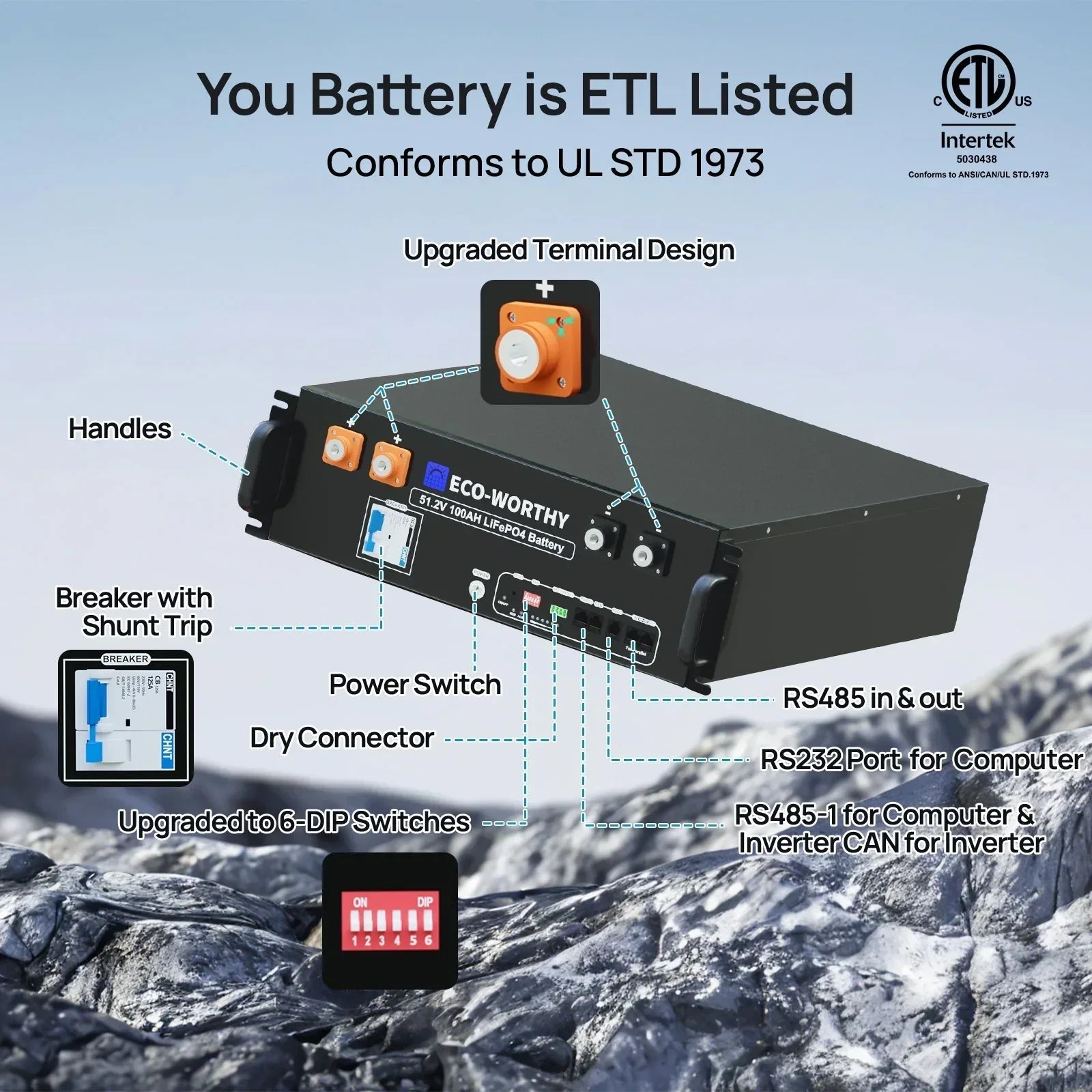

ECO-WORTHY 48V 100Ah LiFePO₄ Lithium Battery
-
Battery Capacity: 100Ah
-
Energy: 5.12kWh
-
Battery Voltage: 51.2V
-
Maximum Charge Current: 100A
-
Maximum Discharge Current: 100A
-
Max Charge Voltage: 58.4V
-
Discharge Cut-Off Voltage: 10V
-
Operating Temperature: –20°C to 60°C (–4°F to 140°F)
-
Cycle Life: ≥4000 cycles at 50% DoD
-
Dimensions: 22.55 × 17.13 × 5.63 in
-
Weight: 95 lbs
This ECO-WORTHY Complete Off-Grid Solar Power System provides a fully integrated, scalable, and high-efficiency solution for off-grid solar power, energy storage, and reliable backup power applications.
