Epoch Battery Tray (12460A-H) (24230A-H)
A 460Ah lithium battery is too valuable to leave unsecured.
The Epoch 12V 460Ah Essentials battery is a serious off-grid power solution, but its large physical footprint and 84 lb weight mean it must be secured correctly in a moving vehicle or vessel. This heavy-duty lithium battery tray is designed to help prevent battery movement in mobile environments where vibration, rough roads, waves, and hard stops can stress cables and terminals.
Use it as a purpose-built 12460A-H battery tray in camper vans, RV electrical bays, marine house banks, and custom solar builds where a secure mounting solution matters as much as battery capacity.
Custom-Fit for the Epoch Essentials 12460A-H
This tray is listed for the Epoch 12460A-H battery and the compatible 24230A-H footprint. It is designed around Epoch’s large-format battery platform, helping eliminate improvisation and create a cleaner, more professional installation than universal trays.
Stop Dangerous Battery Movement
Whether you are driving a skoolie across washboard roads or running through rough water in a boat, a loose battery can stress terminals, chafe cables, damage internal components, and create electrical hazards. A properly installed tray and strap system helps keep the battery planted.
Built for Vans, RVs, and Marine House Banks
Low-profile securement for tight electrical bays and high-capacity lithium installs.
Large-format batteries are often installed under van beds, inside bench cabinets, in RV storage bays, or in marine house battery compartments. This low-profile tray format helps save space compared with a bulky enclosed box while keeping terminal access, airflow, cable routing, and future serviceability in mind.
Heavy-Duty Base & Reinforced Tie-Downs

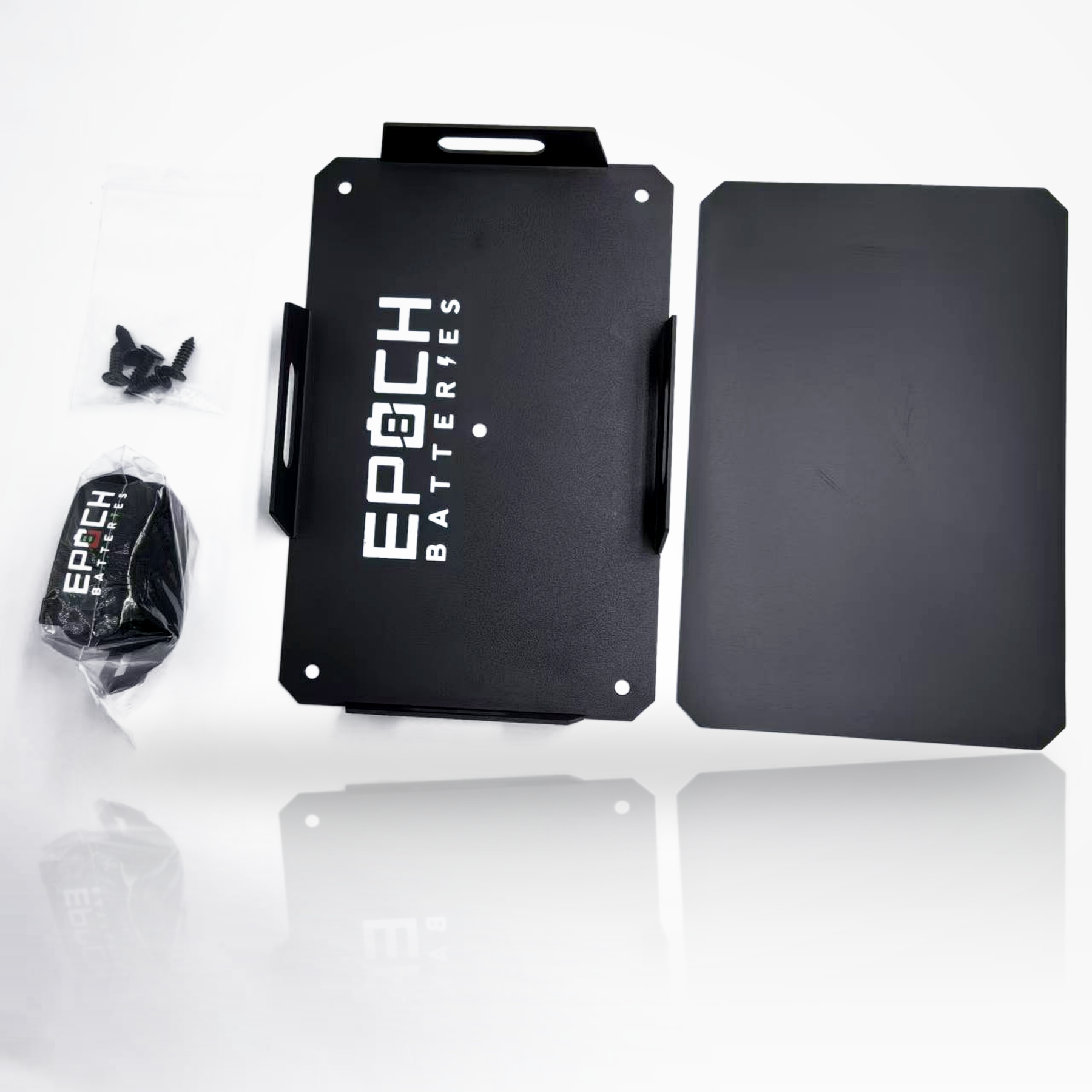

Product images show a rigid mounting base, strap-style hold-down, and mounting hardware. The tray should be fastened into a strong surface, then the strap should be tightened over the battery to help keep it seated during vibration and movement.
Space-Saving, Low-Profile Design
A tray can be a smarter choice than a full battery box in many LiFePO4 house-bank installations. The open layout saves height, improves access to terminals, helps ambient airflow around the case, and makes inspection easier.
| Product details | |
|---|---|
| Official product title | Epoch Battery Tray (12460A-H) (24230A-H) |
| SKU | Tray-12460A-H |
| Primary compatible Epoch model | Epoch Essentials 12V 460Ah / SKU 12460A-H |
| Additional listed compatibility | Epoch 24V 230Ah / SKU 24230A-H-compatible footprint |
| Product type | Large-format lithium battery tray and mount |
| Primary use | RV, van, marine house bank, and off-grid lithium battery securement |
| Fitment and dimensions | |
| Compatible battery dimensions | 12460A-H battery measures 20.55 in L × 9.45 in W × 8.60 in H |
| Recommended planning clearance | Allow at least the battery footprint plus tray lip, strap clearance, cable bend radius, and terminal-service access |
| Included components | |
| Mounting tray / base | Yes |
| Hold-down system | Velcro strap hold-down |
| Mounting hardware | Screws / mounting hardware |
| Installation notes | |
| Mounting surface | Secure to a structurally sound floor, deck, shelf, or battery platform using appropriate fasteners |
| Battery movement | Final retention depends on fasteners, surface material, strap tension, and installation quality |
| Marine securement guidance | Installed batteries on boats must be secured so they cannot move more than one inch under the applicable test force |
| Battery box alternative | Tray-style installation can save space and improve terminal access for LiFePO4 batteries that do not require lead-acid style venting |
| Accuracy notes | |
| Material | N/A |
| Rated load capacity | N/A |
