Description

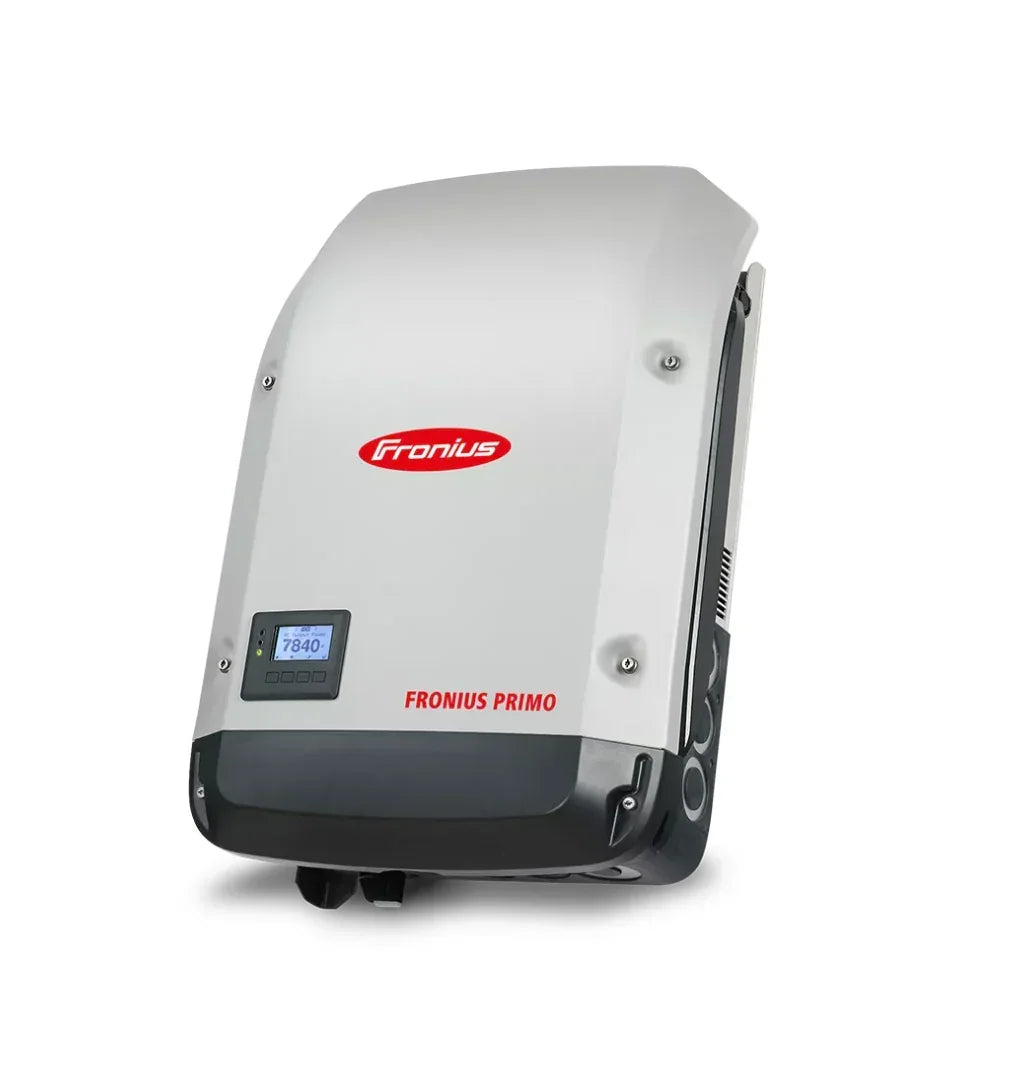

Fronius Primo 5.0-1 208-240VAC Single Phase String Inverter 4,210,063,800
Introducing the Fronius Primo 5.0-1, a state-of-the-art single-phase string inverter designed for residential solar installations. With its compact design and advanced technology, it offers an efficient and reliable solution for harnessing solar energy.
- Optimized for performance with up to 96.9% efficiency.
- Dual MPPT trackers for flexible installation and maximum energy yield.
- Integrated Wi-Fi and Ethernet for easy system monitoring and management.
- Smart Grid Ready, ensuring compatibility with future energy systems.
- Easy and quick installation with the SnapINverter mounting system.
Technology and Overview
The Primo 5.0-1 incorporates advanced MPPT technology and active cooling to ensure optimal performance and long-term reliability.
Installation and Compatibility Overview
Designed for versatility, it supports a wide range of PV modules and is compatible with various system sizes, making it ideal for residential applications.
Benefits and Applications Overview
This inverter not only reduces your carbon footprint but also offers significant savings on electricity bills, making it a smart choice for eco-conscious homeowners.
| Specification | Value |
|---|---|
| Model | PRIMO 5.0-1 |
| Recommended PV power (kWp) | 4.0 - 7.8 kW |
| Max. Input Current | (MPPT 1/MPPT 2 - 18 A / 18 A) (MPPT 1+MPPT 2 - 36 A) |
| Nominal Input Voltage | 420 V |
| Max. Input Voltage | 600 V (1,000 V optional2 ) |
| Max. Output Power (208V / 240V) | 5,000 VA |
| Max. Continuous Output Current (208V / 240V) | 24.0 A / 20.8 A |
| Frequency Range | 45-55 Hz / 50 - 66 Hz |
| Max. Efficiency | 96.9 % |
| CEC Efficiency 600 V/1,000 V | 95.5 % |
| Cooling | Variable speed fan |
| Warranty | 10 years / extensions up to 15 and 20 years available 1 |
