Description

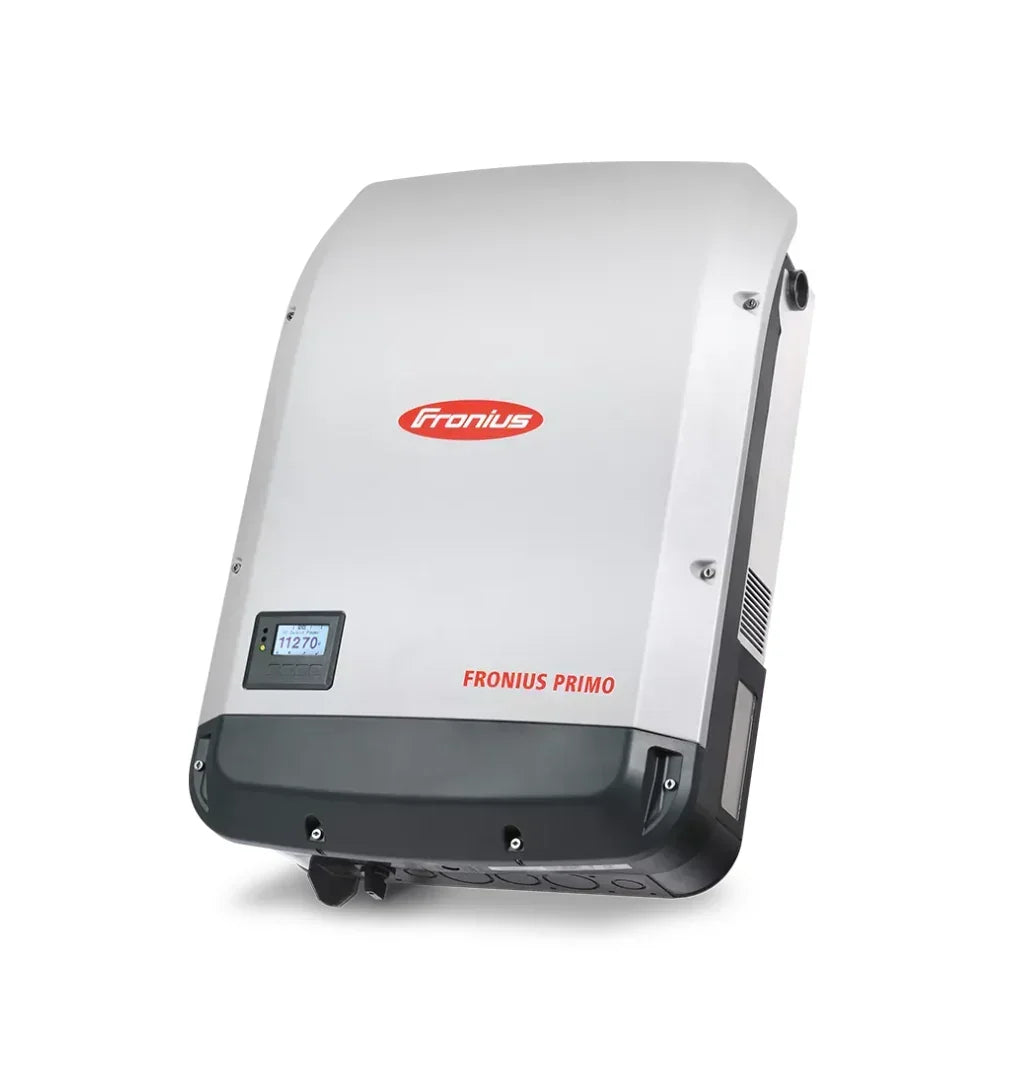

Fronius Primo 12.5kW 4,210,077,800 240/208VAC TL Inverter
Explore the Fronius Primo 12.5-1, a top-tier single phase string inverter designed for residential solar installations. Combining efficiency with innovative technology, it offers unmatched performance in converting solar energy to usable power, making it a smart choice for homeowners looking to maximize their solar investment.
- Advanced MPPT technology for optimal solar harvest and efficiency.
- Integrated Wi-Fi and Ethernet connectivity for easy monitoring and management.
- Seamless integration with Fronius Solar.web for real-time system analysis.
- Smart Grid Ready, ensuring compatibility with future energy markets.
- Unique SnapINverter mounting system for quick and secure installation.
Technology and Overview
The Primo 12.5-1 utilizes state-of-the-art MPPT technology and cooling systems to ensure maximum power output and longevity, making it an ideal solution for residential PV systems.
Installation and Compatibility Overview
Featuring a flexible and straightforward installation process, the Primo 12.5-1 is compatible with a wide range of PV panels and grid configurations, ensuring adaptability to virtually any home setup.
Benefits and Applications Overview
With its high efficiency and advanced monitoring capabilities, the Fronius Primo 12.5-1 not only reduces electricity bills but also contributes to a sustainable future. Perfect for residential applications seeking reliable solar solutions.
| Specification | Value |
|---|---|
| Model | Primo 12.5-1 |
| Recommended PV Power | 10.0 - 15.0 kW |
| Max. Input Current | (MPPT 1/MPPT 2 - 33.0 A / 18.0 A) (MPPT 1+MPPT 2 - 51 A) |
| Nominal Input Voltage | 665 V |
| Max. Input Voltage | 1000 V |
| Max. Output Power (208V / 240V) | 12500 VA |
| Max. Continuous Output Current (208V / 240V) | 60.1 A / 52.1 A |
| Frequency Range | 45-55 Hz / 50-66 Hz |
| Max. Efficiency | 96.7% |
| CEC Efficiency | 96.0% / 96.5% |
| Cooling | Active cooling |
| Warranty | 10 years, extendable up to 15 and 20 years |
