Description

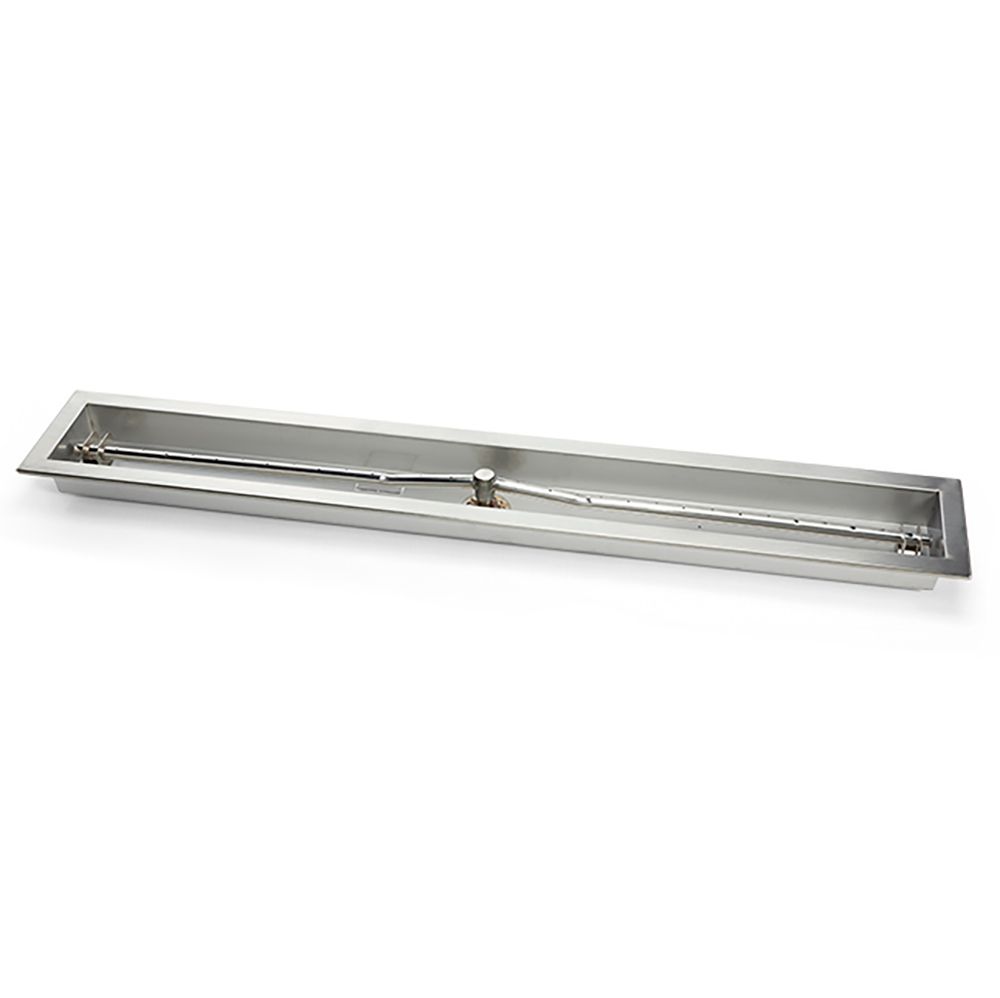

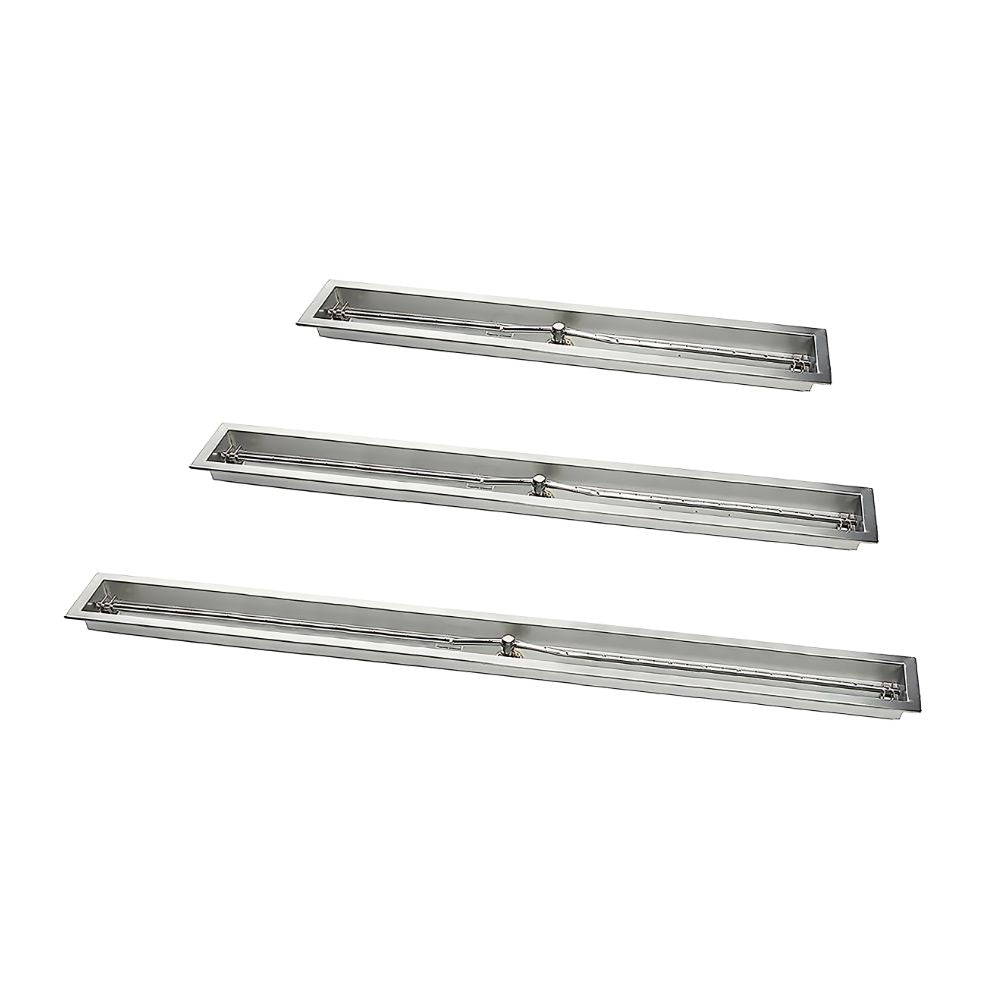

Hearth Products Controls 72" Stainless Steel Trough Burner with pan
Introducing Our Linear Single Tube Burners
The T-burner and pan are constructed with Premium 304 stainless steel, 1 mm wall thickness. The 24, 36, & 48 pans are made with 18g SS, while the larger 60, 72, & 96 are made of 16g SS. Includes 5.3″ wide pan with 1.3″ lip and T-Burner.
Dimensions:
- Pan opening: 72″ L x 5.3″ W
- Pan Lip: 1.3″
- Pan w/ Lip: 75″ L x 8″ W
- Pan depth: 2 1/2″
- For optimal flame height, we recommend at least 150,000 BTU
- Burner holes are drilled and staggered for maximum flame effect
- Straight pipe burner designed with gas T in center of pipe
- Gas pipe extends thru center of pan
- 1/2″ NPT gas connection
- Available for natural gas or LP Liquid propane
