Rhino Shelter | 12’W x 24’L x 8’H Instant Garage (House)

Roll over image to zoom in Click on image to zoom

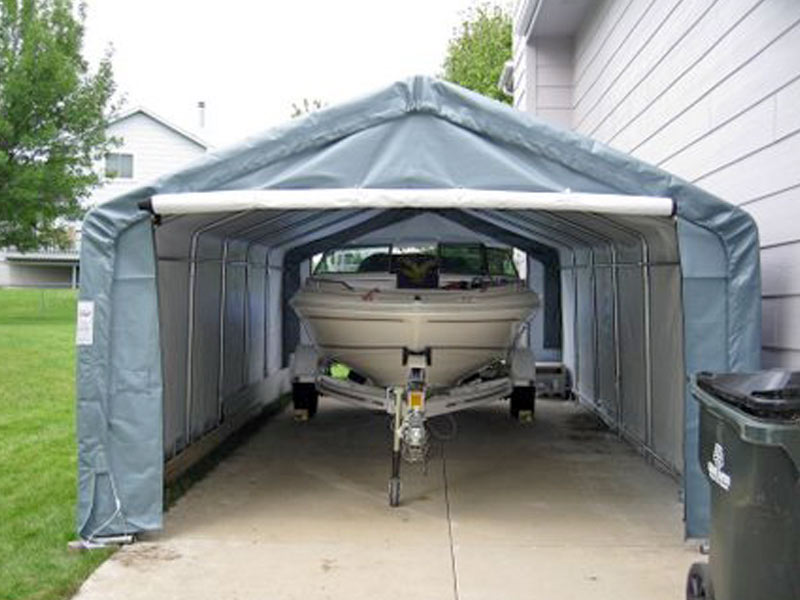

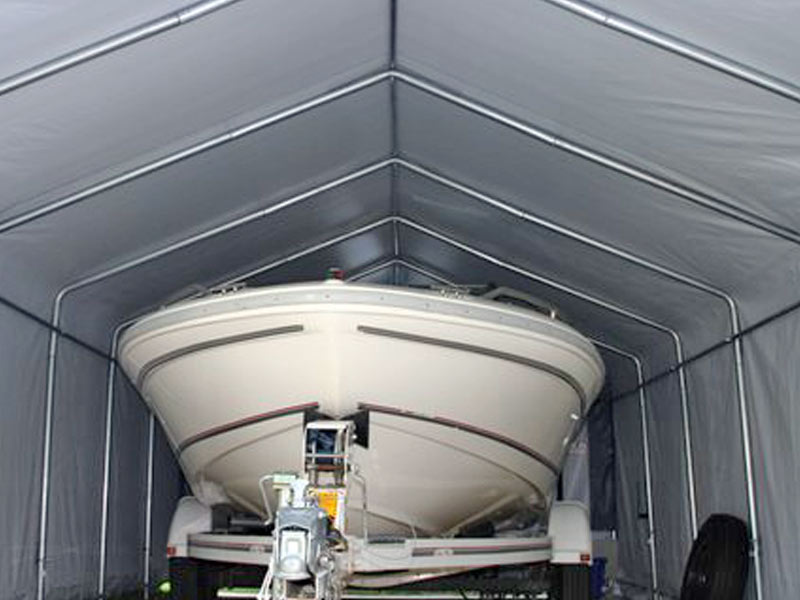

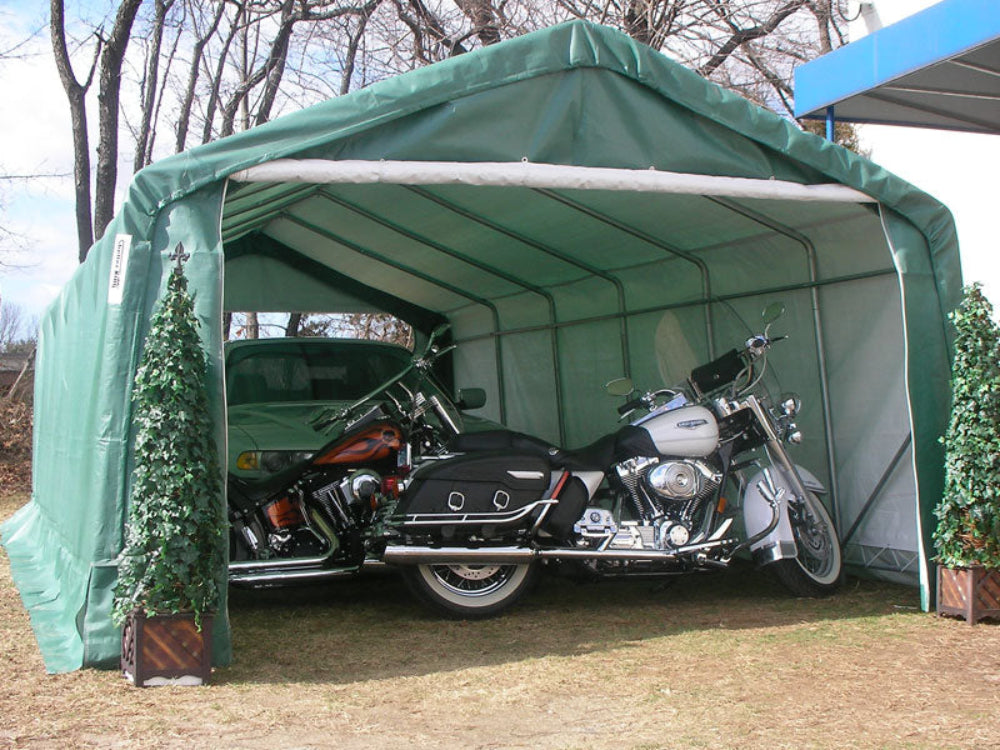

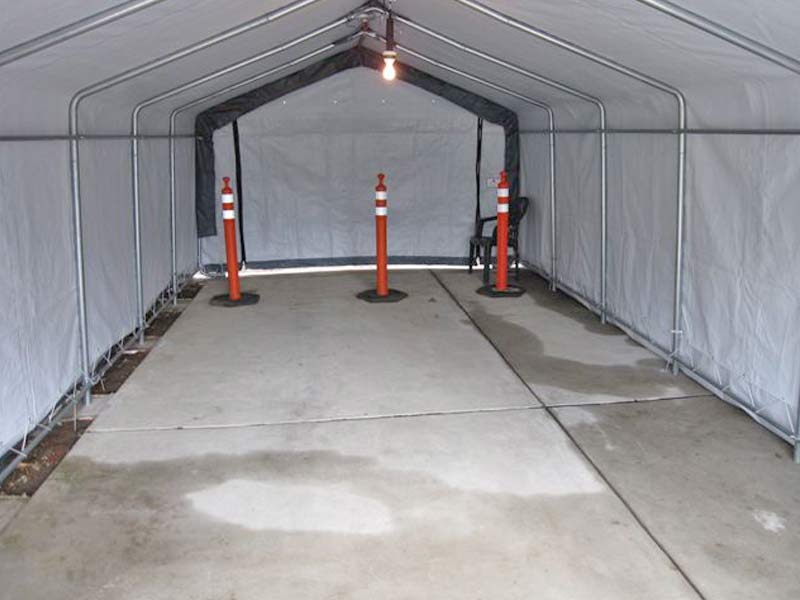

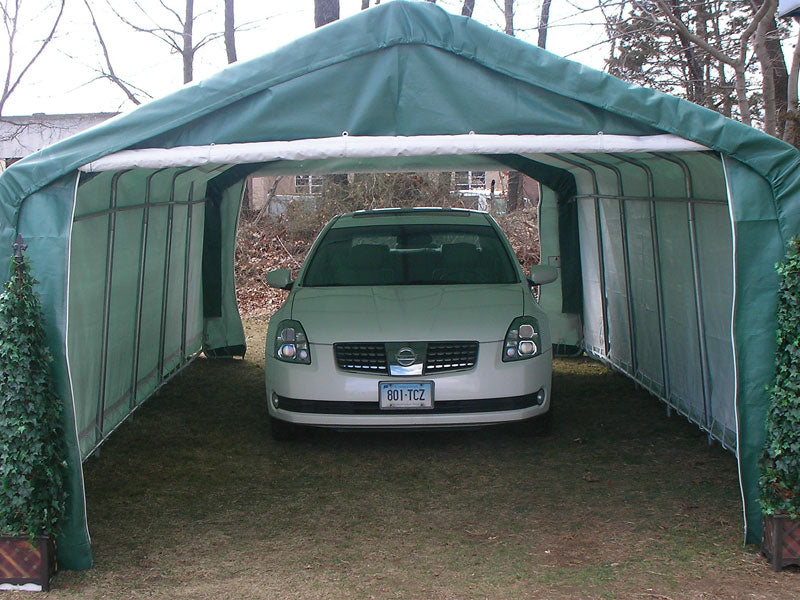

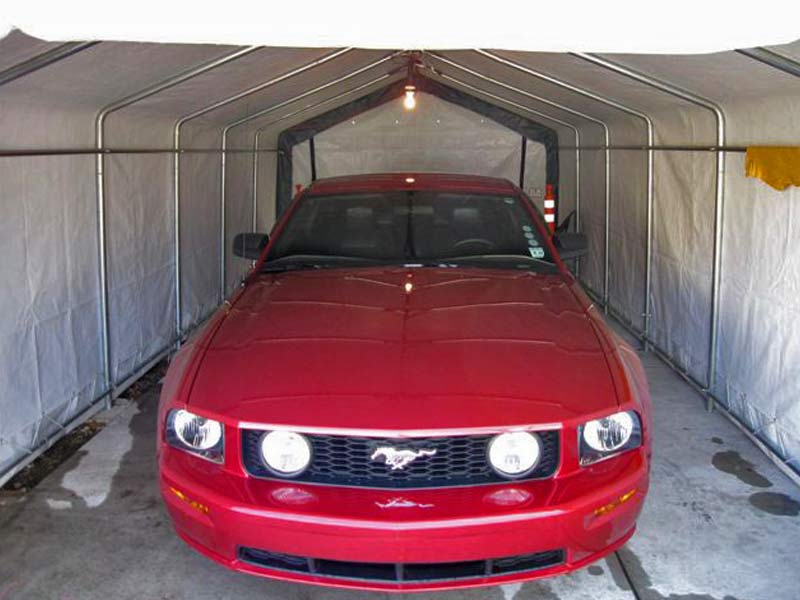

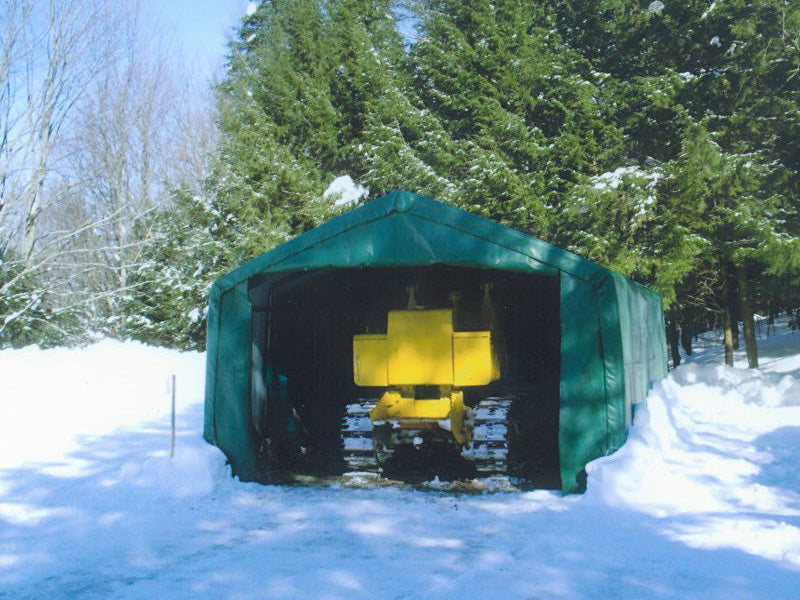

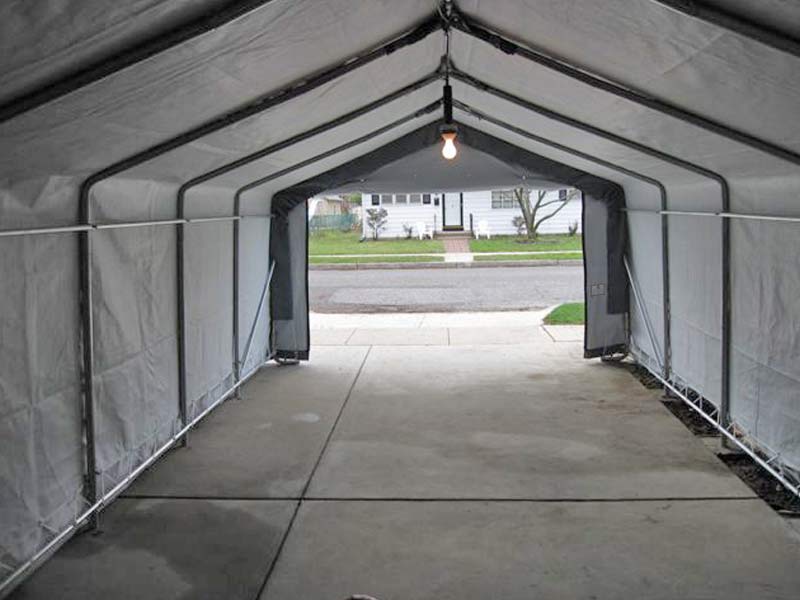

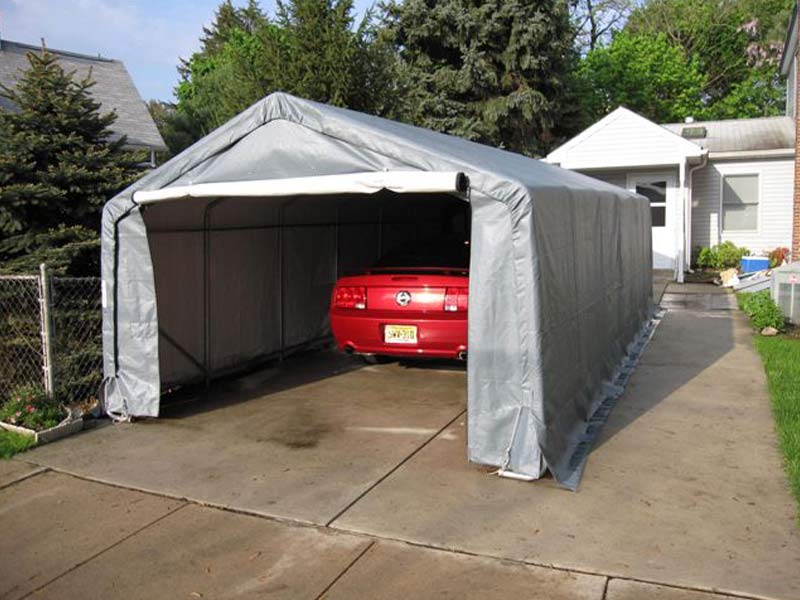

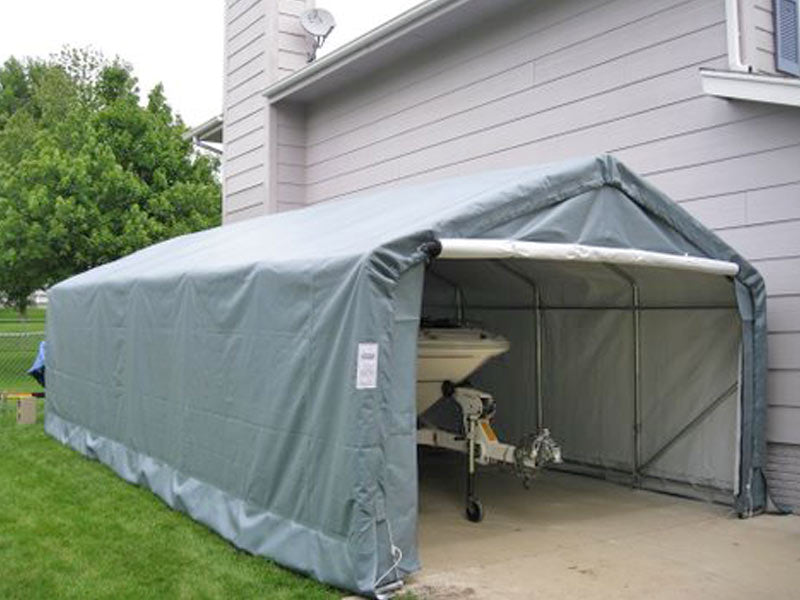

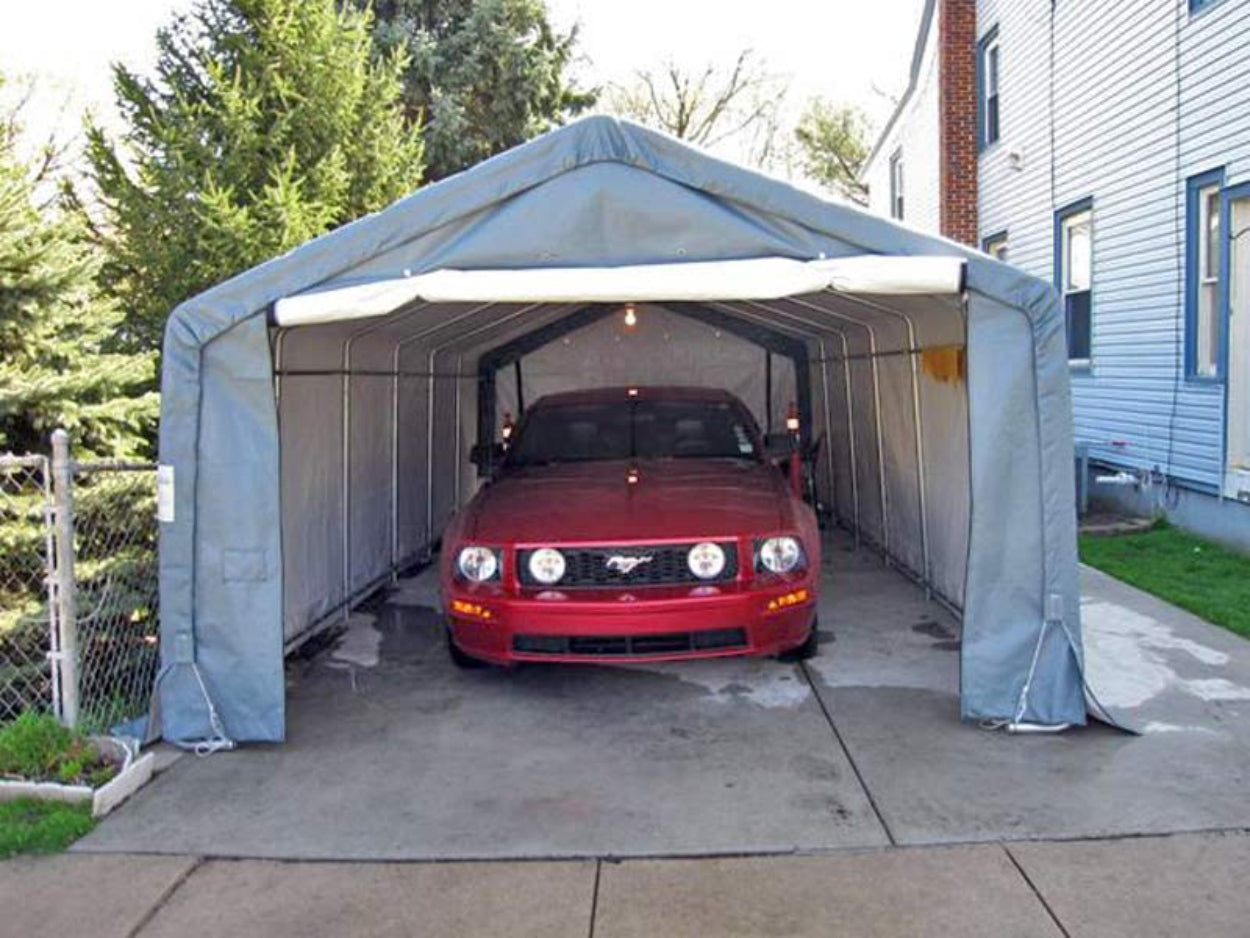

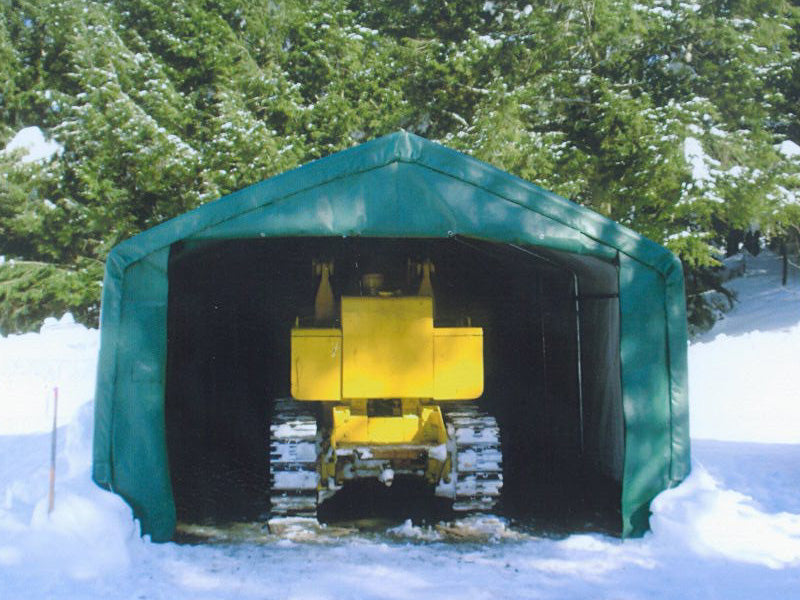

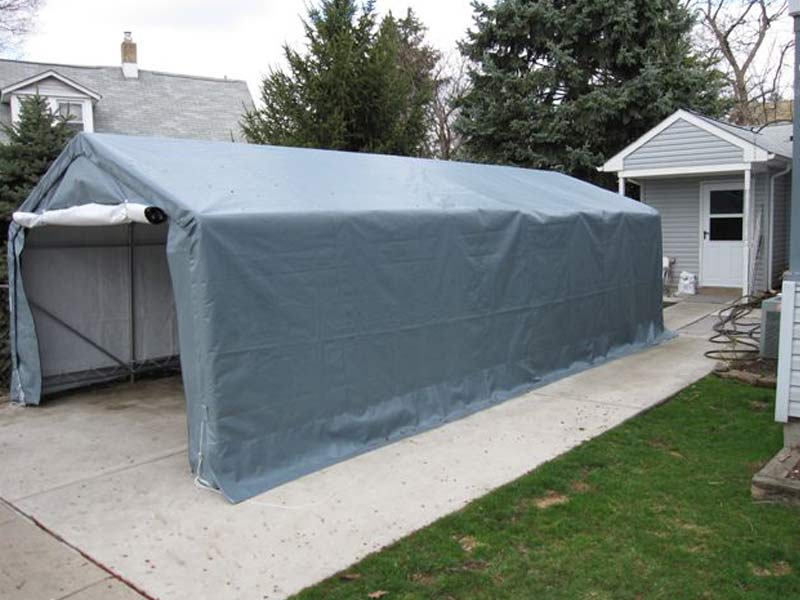

This instant garage offers an extra 108 square feet of storage space for a full-size car to store multiple items. It measures 12 feet wide by 24 feet long and 8 feet high and is typically used for vehicle protection and storage, equipment and material storage, and as workshop areas. It comes in forest green and gray color options. The bright white interior is excellent for reflecting ambient light.

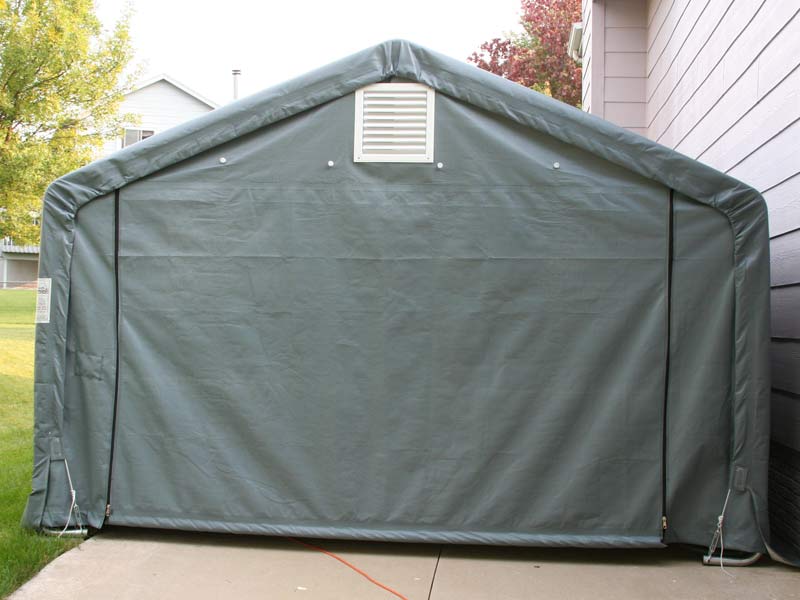

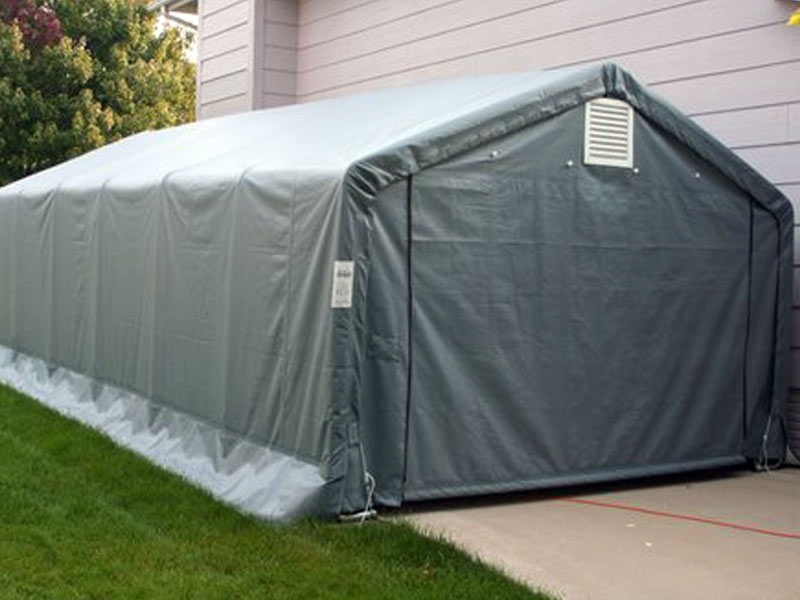

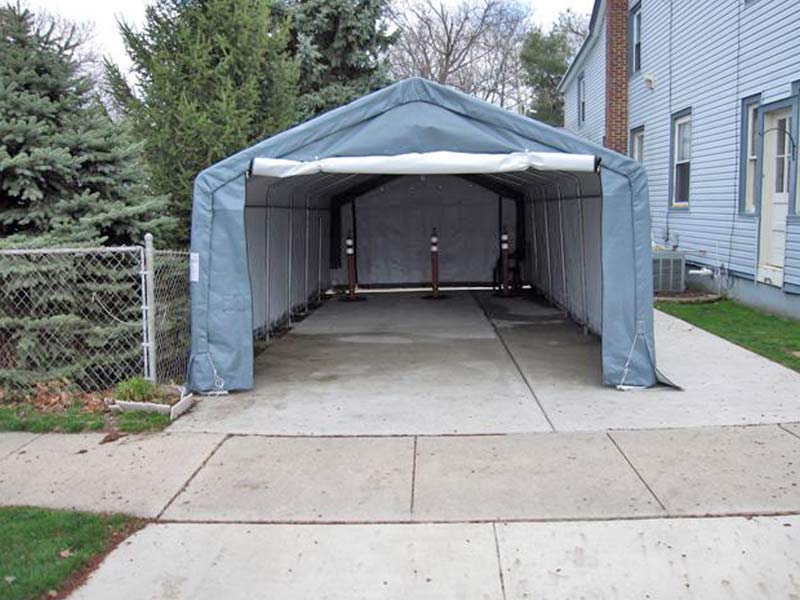

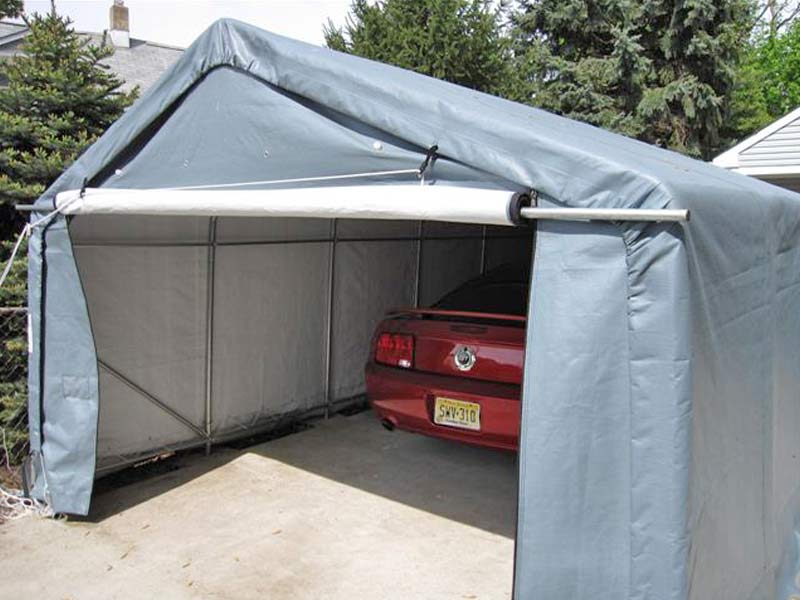

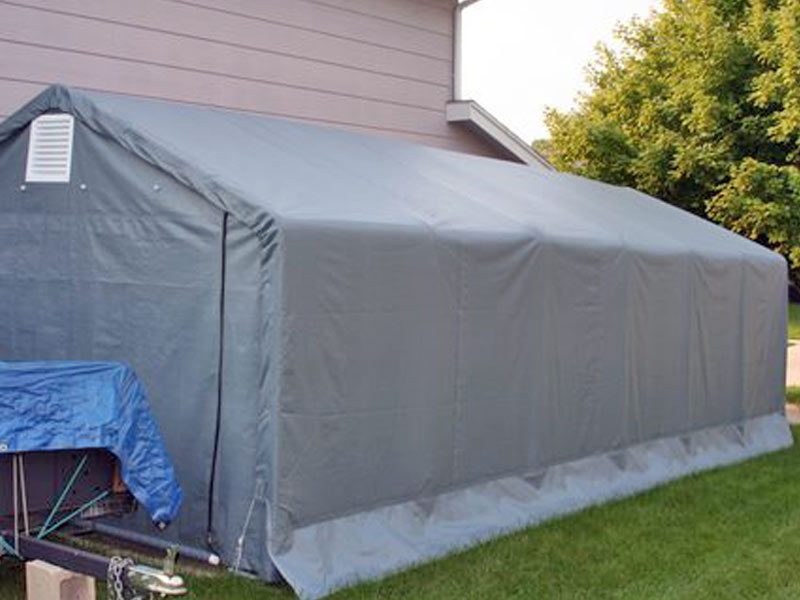

The house style provides extra space along the sides of the enclosure with maximum height near the center ridge. The unit features a double-zipper door on both ends for drive-thru capabilities and good ventilation. The long-lasting fabric cover is designed with full flaps to provide for the run-off of and diversion of rain or melting snow. You can be sure your investments are fully protected and safe.

Included

10 oz. UV Treatment Cover
2 Double Zipper Doors- 10’W x 6’H
8 Cable Earth Anchor Kit
1-5/8 Galvanized steel Frame

Exclusive Features

Heavy Duty Galvanized Finish on All Steel Frame Components for Maximum Strength & Long Life
Easy Bolt Together Design – All Pre-drilled & Cut
Wind Brace Support on Both Sides
Two(2) Double Zipper Doors with Bottom Pockets
Protective Plastic Tube End Caps – All Open Ends
Standard Thread Plated Hardware Kit with Retaining Nuts & Protective SS Washers
Quick Assembly Wrench included
Heavy Duty Poly Rope for Main Cover Tie Down
Heavy Duty Grommets on Cover & Doors
Assembles in 2 hrs.
Two Box Shipment – easily unloaded and transported

Easy Fit Together Design – all Pre drilled & Cut

Pipe Size

Designed For Heavy Snow Load

permanent anchors

Standard Specifications

Nominal Size 12′ Wide x 24’ Long x 8′ High

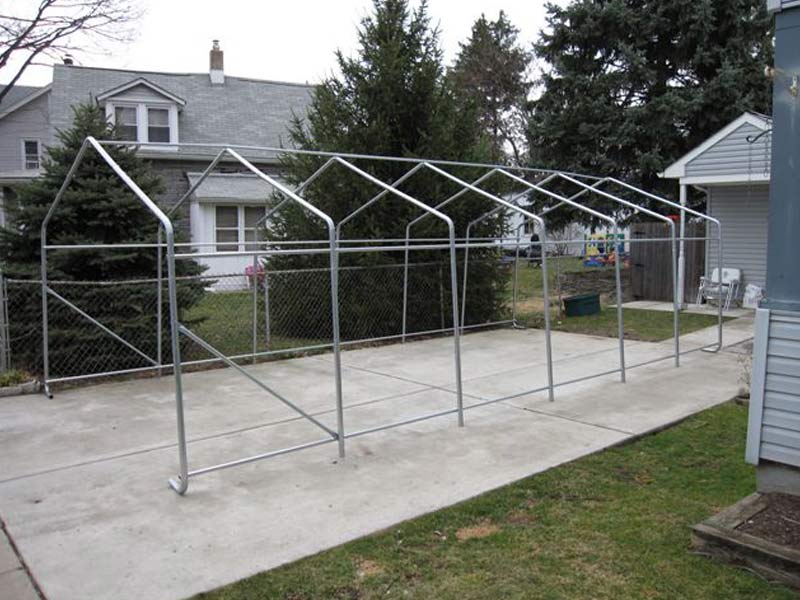

Arches Seven (7) on 48″ spacing
1-5/8″ diameter frame members
Standard End Door Size12′ wide x 6′ 6″ height at edgeA
double zipper door on each end
Available Colors Outer Colors: Gray / Green
All Interiors: Bright White Only
Shipping Weight 344 Lbs. in Two (2) boxes shipped via motor freight
Pallet Dimensions
40″ x 67″ x 23″

Box Dimensions
Box 1: 63.5″ Long x 17.5″ Wide x 8″ High
Box 2: 67″ Long x 21.5″ Wide x 8.5″ High
Main Cover
UV protected 24 mil, fabric-backed poly. 10oz. weight
Fire Retardant Standard
Main Cover & Doors meet CPAI -84 Section 5
Anchors
Six ( 6 ) 36″ Anchors with U-Bolts & 36″Drive Rod Std.
Stock Number
12x24x08- GA122408HGN, GA122408HGY
