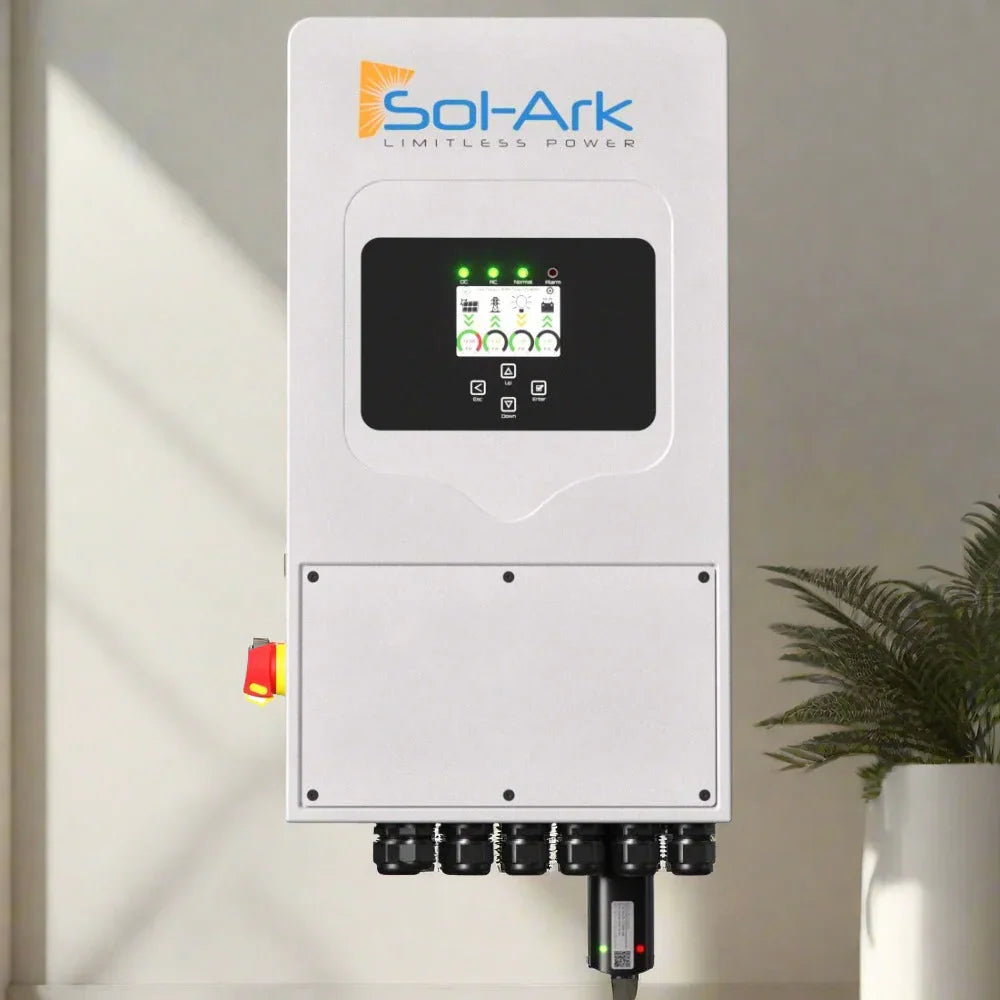

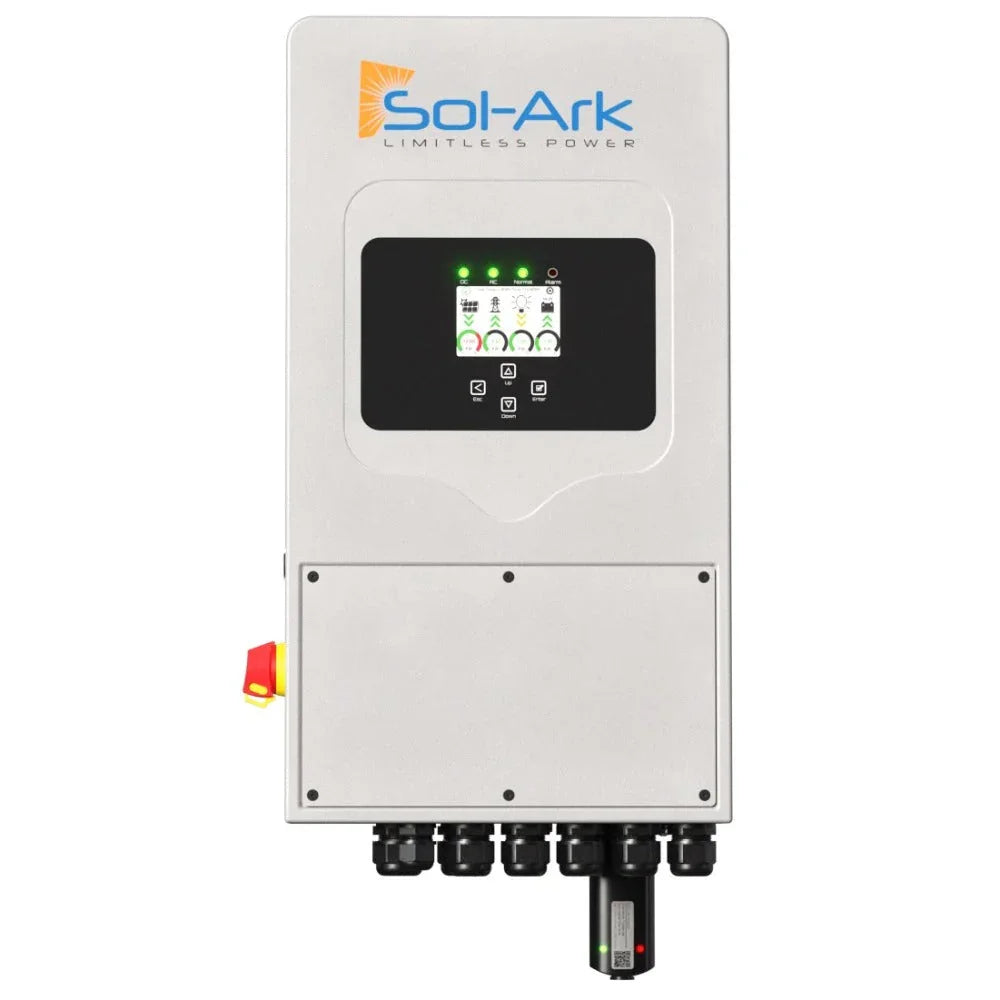

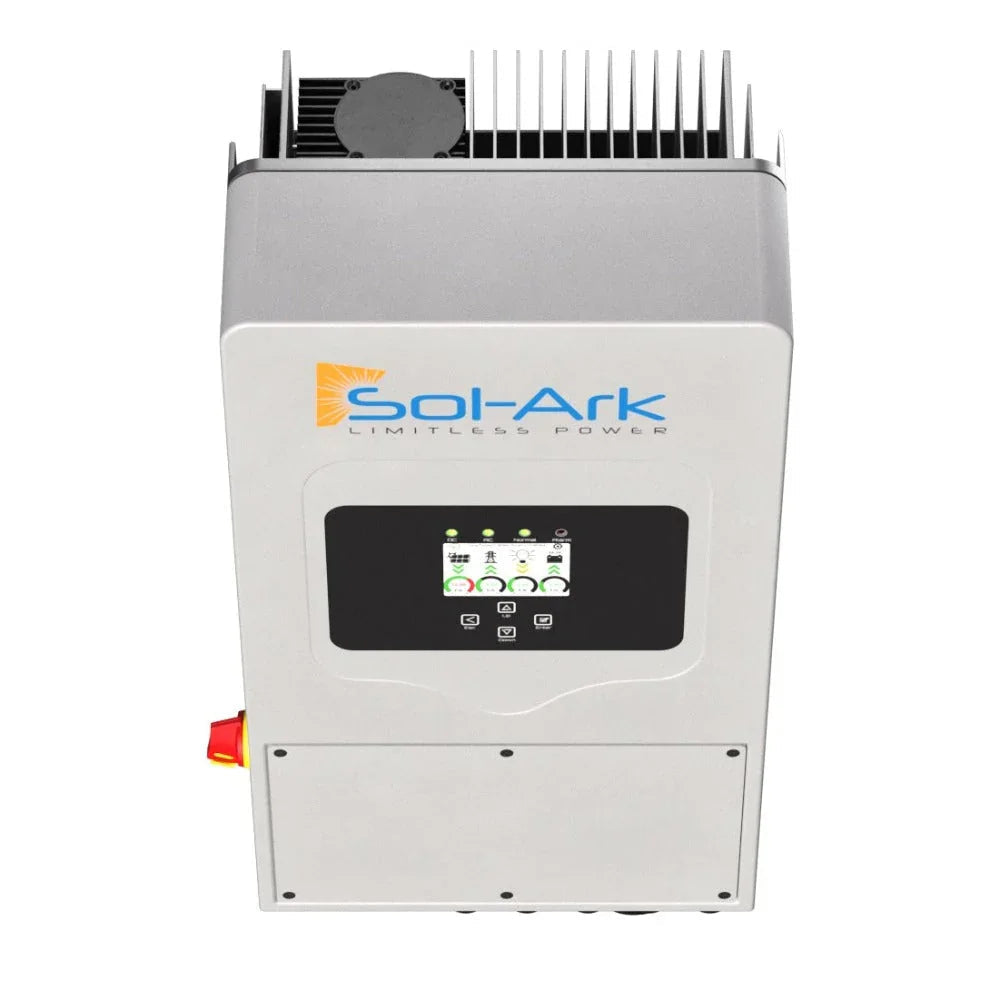

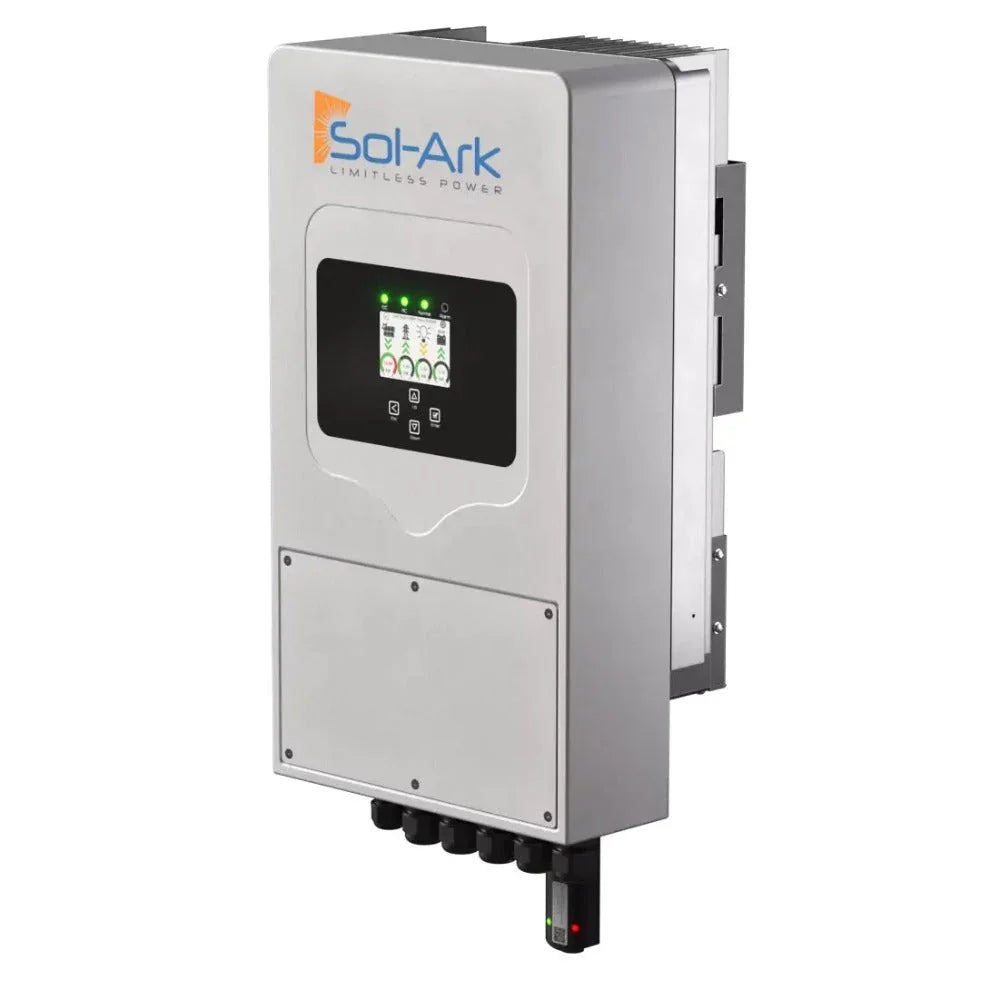

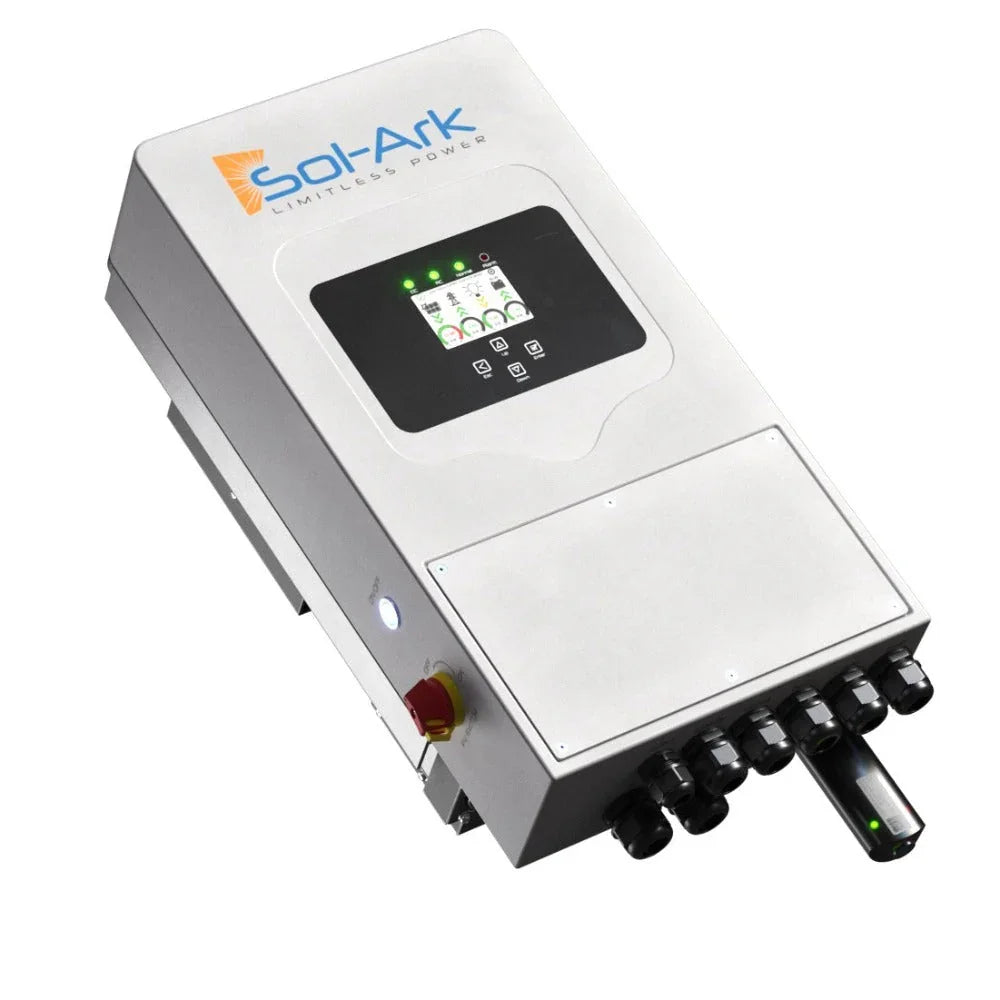

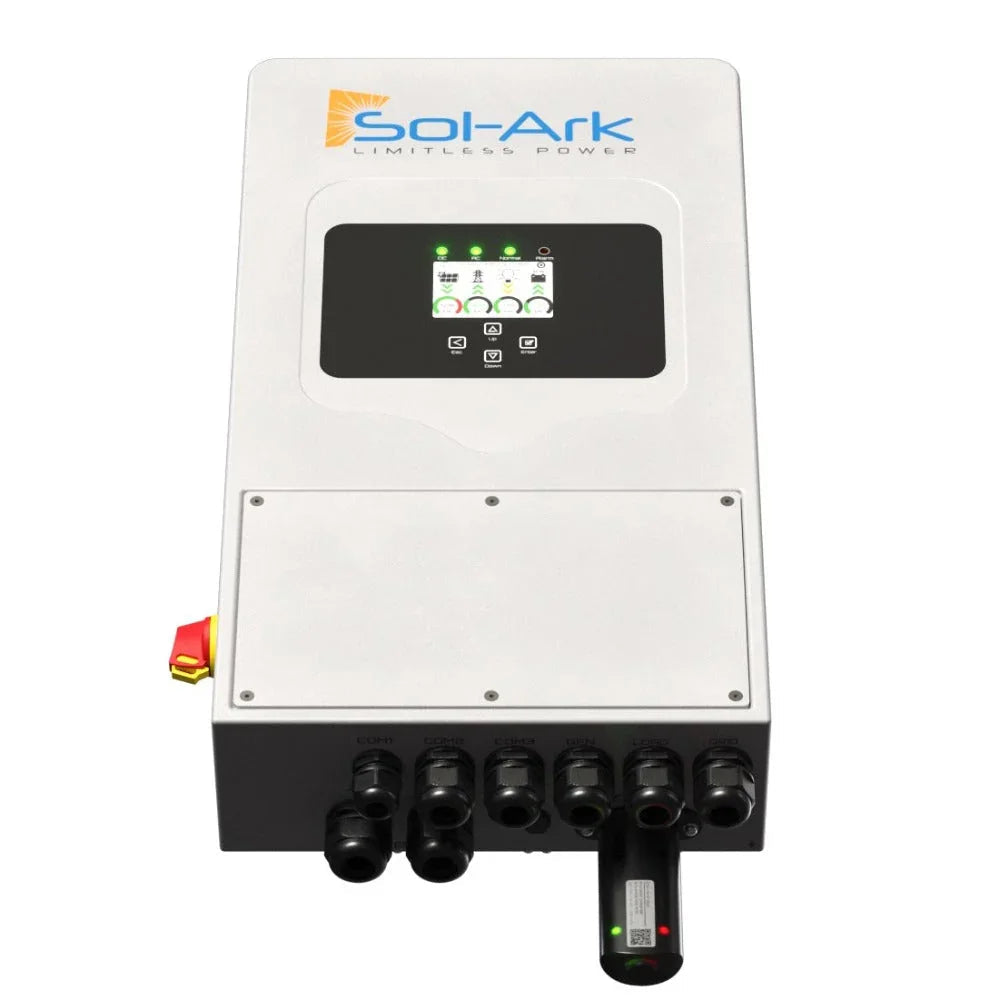

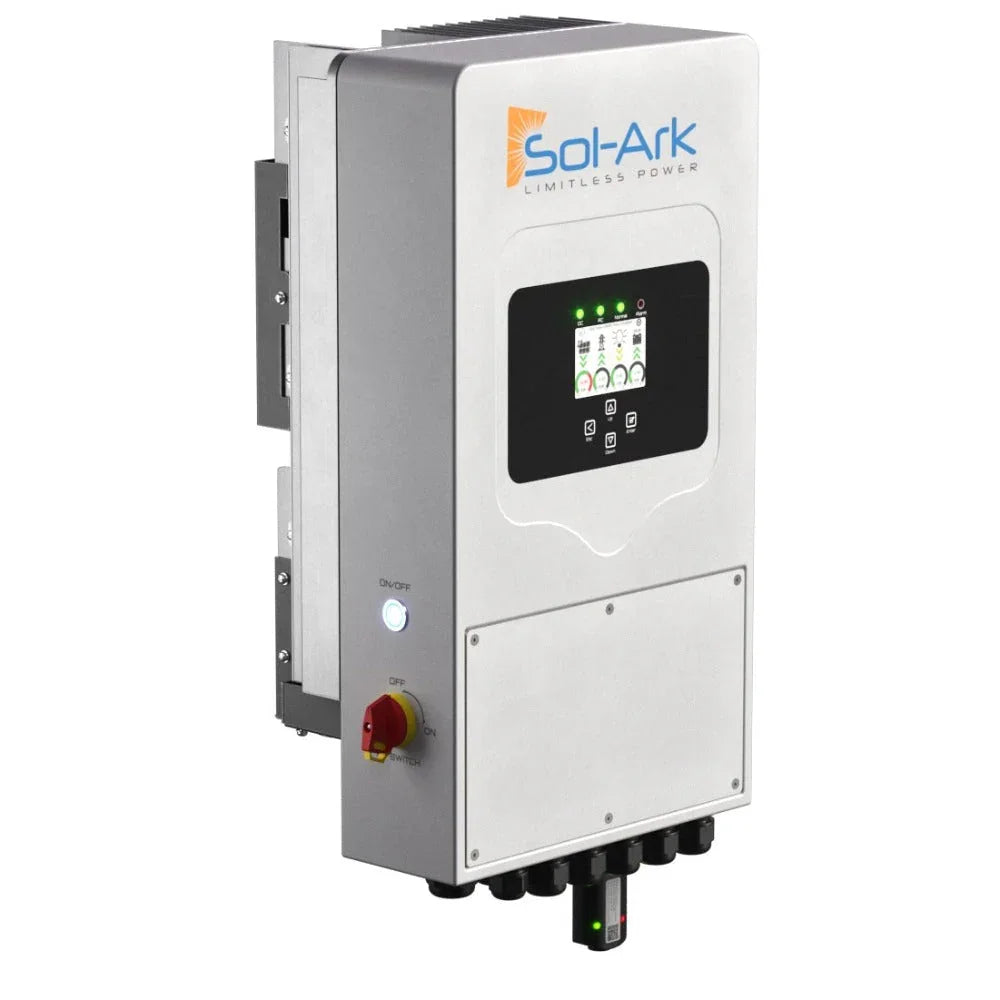

Sol-Ark 5K/8K-1P Hybrid Inverter Overview
An economical and reliable single-phase solar hybrid inverter designed for homeowners.
SOL-ARK 5K/8K-1P Hybrid Inverter Features & Benefits
Easy Install
The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.
Fleet Management
With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.
Battery Agnostic
Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.
SOL-ARK 5K/8K-1P Hybrid Inverter Specification
Characteristics:
- Manufacturer: Sol-Ark
- Model: SA-5K-1P-N
- Rated Power Output [W]: 4800
- Length [mm (in)]: 579.12 mm (22.8 in)
- Width [mm (in)]: 330.2 mm (13 in)
- Depth [mm (in)]: 231.14 mm (9.1 in)
- Weight [kg (lb)]: 28.12 kg (62lb)
- Warranty [Years]: 5
Inverters:
- Inverter Type: Hybrid inverter
- Maximum/Peak Efficiency [%]: 97.6
- Transformer / Transformerless: Transformerless DC
- DC Power Rating [W]: 10400
- Max. Input Power [W]: 10400
- Max. Input Voltage [V]: 500
- Max. Input Current [A]: 40
- Min. DC voltage / start voltage [V]: 150
- Min. DC voltage / start voltage [V]: 150
- Number of DC String Inputs (Inlets): 4
- Number of MPP Trackers: 2
- Max. Input Power per MPPT [W]: 5200
- Max. Input Voltage per MPPT [V]: 500
- Max. Input Current per MPPT [A]: 20
- Voltage Lower Limit for MPP Range [V]: 125
- Voltage Upper Limit for MPP Range [V]: 425
- DC Disconnection Type: Integrated
- Reverse-Polarity Protection: true
- AC Power Rating [W]: 4800
- Nominal AC Power [W]: 4800
- Max. AC Power [W]: 4800
- AC voltage range [V]: 114-123
- AC grid frequency [Hz]: 60
- Max. output current [A]: 40
- Nominal AC Voltage [V]: 120
- Maximum AC Voltage Range [V]: 123
- Nominal AC Frequency [Hz], range [Hz-Hz]: 60
- Max. AC Line Current [A]: 50
- AC Connection Type: L1/Neutral/Ground
- AC Input Wire Gauge Range [AWG]: 8 AWG - 6 AWG
- Sleep (Night) Consumption [W]: 60
- NEMA Enclosure Rating: IP65 / NEMA 3R
- Cooling Method: Integrated Fans
- Ambient Temperature Range [°C(°F)]: -25°C to +60°C (-13°F to +140°F)
- Display: LCD Touch Screen
- Communication: Wi-Fi, LAN, CanBus, RS485
- Basic Warranty [Years]: 5
- Compliances: UL1741-2010/2018, IEE-E1547a-2003/2014, FCC 15 Class B
- AC grid range [Hz]: 55-65
- Max. recommended PV power (@ module STC): 10400
Warranty and Reliability
Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.
What's in The Box
- 1 x SOL-ARK 5K/8K-1P Hybrid Inverter
