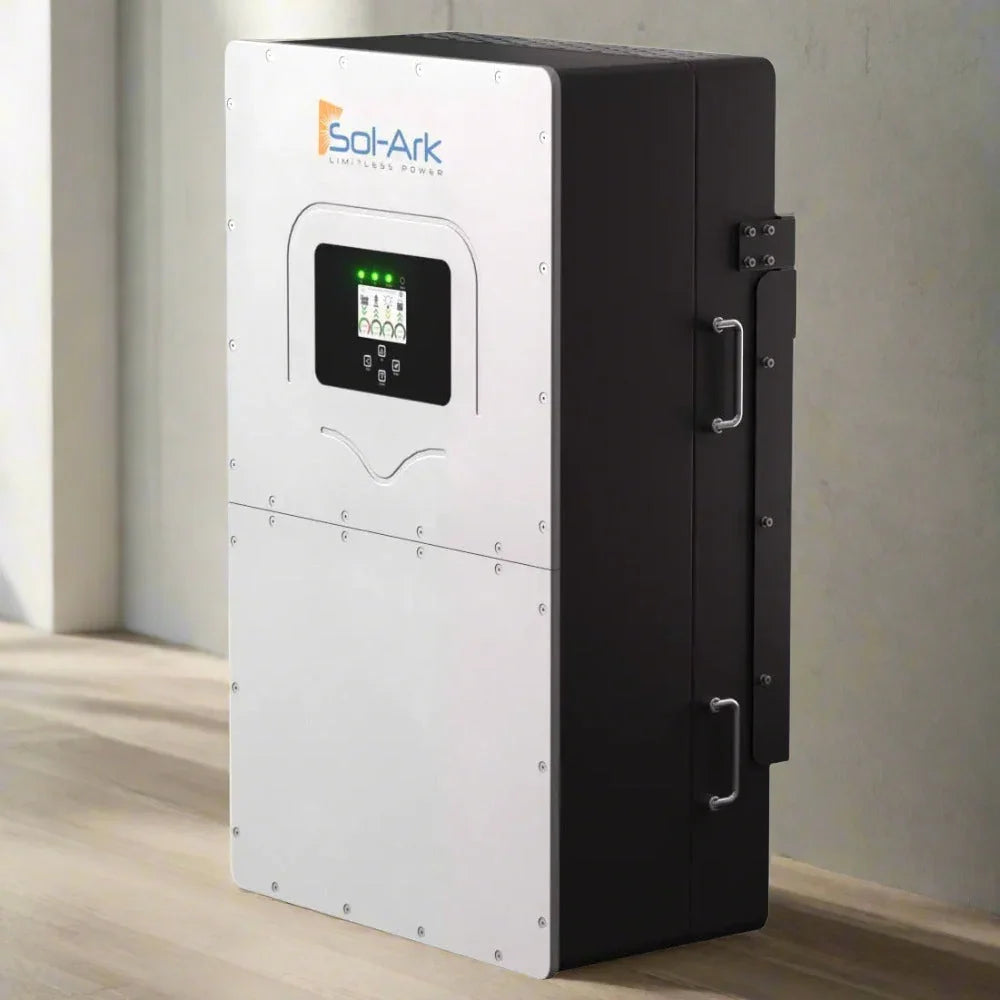

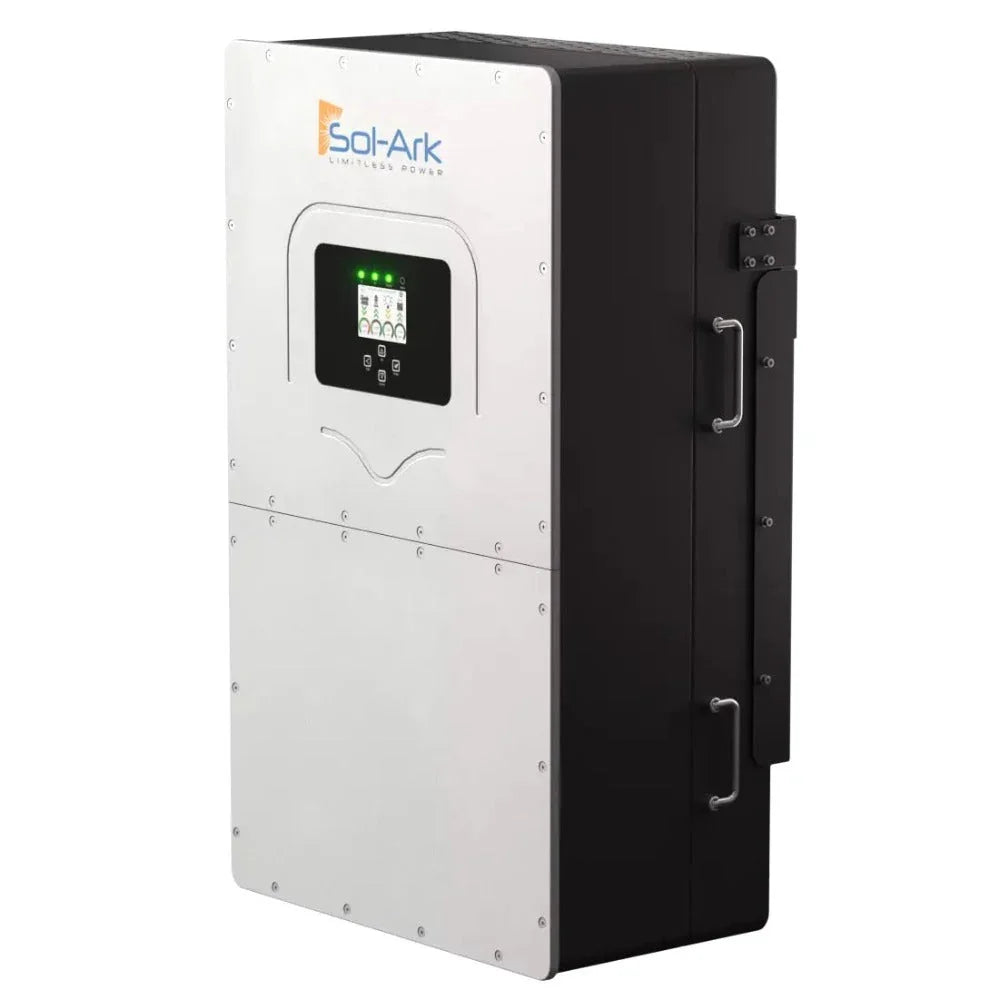

Sol-Ark 60K-3P Hybrid Inverter Overview
Introducing the Sol-Ark 60K All-In-One Hybrid - a high-performance and dependable solar inverter that seamlessly combines solar, storage, and generator power. Utilizing the latest technology, the Sol-Ark 60K is ideal for a wide range of applications, from residential to commercial and industrial settings. Let's examine its features more closely.
SOL-ARK 60K-3P Hybrid Inverter Features & Benefits
Easy Install
The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.
Fleet Management
With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.
Battery Agnostic
Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do. With our 30k and 60k high voltage systems, closed-loop communications with the batteries are required.
SOL-ARK 60K-3P Hybrid Inverter Specifications
Input Data (PV)
- Max. Allowed PV Power (STC): 78,000W
- MPPT Voltage Range: 150 - 850V
- Startup Voltage: 180V
- Max. Input Voltage: 1,000V
- Max. Operating Input Current per MPPT: 36A
- Max. Short Circuit Current per MPPT: 55A
- No. of MPP Trackers: 4
- No. of PV Strings per MPPT: 2
- Max. AC Coupled Input: 60,000W
Output Data (AC)
- Nominal AC Voltage (3Φ): 277/480V
- Grid Frequency: 50 / 60Hz
- Real Power, max continuous (3Φ): 60,000W
- Max. Output Current: 72.3A
- Peak Apparent Power (10s, off-grid, 3Φ): 90,000VA
- Max. Grid Passthrough Current (10min): 200A
- Continuous Grid Passthrough Current: 180A
- Power Factor Output Range: +/- 0.8 adjustable
- Backup Transfer Time: 5ms (adjustable)
- CEC Efficiency: 96.5%
- Max Efficiency: 97.5%
- Design (DC to AC): Transformerless DC
- Stackable: Up to 10 in parallel
Battery Input Data (DC)
- Battery Technologies: Lithium iron phosphate
- No. of Battery Inputs: 2
- Battery Input Terminal Rating: 50A
- Nominal DC Voltage: ≥600V
- Operating Voltage Range: 160 - 800V
- Capacity: 50 — 9900Ah
- Max. Battery Charge / Discharge Current: 100A (50A per input)
- Charging Controller Type: 3-Stage with Equalization
- Grid to Battery Charging Efficiency: 96.0%
- Automatic Generator Start (AGS): 2 Wire Start - Integrated
-
BMS Communication: CANBus & RS485 MODBUS
General Data
- Dimensions (H x W x D): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
- Weight: 80 Kg / 176 lb.
- Enclosure: IP65 / NEMA 3R
- Ambient Temperature: -25~55°C, > 45°C Derating
- Noise: < 30 dB @ 25°C (77°F)
- Idle consumption: - No Load 60W
- Communication and Monitoring: Wi-Fi & LAN Hardware Included
-
Standard Warranty: 10 Years (15 Years)
Protection and Certifications
-
Certifications and Listings: UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16,
IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP - PV DC Disconnect Switch — NEC 240.15: Integrated
- Ground Fault Detection — NEC 690.5: Integrated
- PV Rapid Shutdown Control — NEC 690.12: Integrated
- PV Arc Fault Detection — NEC 690.11: Integrated
- PV Input Lightning Protection: Integrated
- PV String Input Reverse Polarity Protection: Integrated
- Surge Protection: DC Type II / AC Type II
Warranty and Reliability
Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.
What's in The Box
- 1 x SOL-ARK 60K-3P Hybrid Inverter
User Manual
- SOL-ARK 60K-3P Hybrid Inverter User Manual
- SOL-ARK 60K-3P Hybrid Inverter Certification
- SOL-ARK 60K-3P Hybrid Inverter Spec Sheet
- SOL-ARK 60K-3P Hybrid Inverter Brochure
